Description
Baran Kablo’s 2XSLCHK-J Servo Motor Cable is a double-shielded motor power cable specifically designed for outdoor applications. This cable is effectively used with frequency converters in industrial plants, machine tools, automation technologies, and production facilities. It is engineered to perform reliably under wet, dry, and humid conditions, offering dependable performance in outdoor environments.
A standout feature of the 2XSLCHK-J cable is its ability to provide interference-free, excellent data and signal transmission in measurement and control technologies, thanks to its foil and copper braid screens. Additionally, with the use of an HFFR (Flame Retardant and Self-Extinguishing) compound, this cable prevents the spread of flames and produces very little smoke during a fire, making it suitable for areas with high fire safety requirements.
This product offers superior protection against harsh outdoor conditions and is an ideal solution for complex, technically demanding applications. Designed with safety and performance in mind, the 2XSLCHK-J Servo Motor Cable stands out as a reliable option among Baran Kablo’s industrial cable solutions.

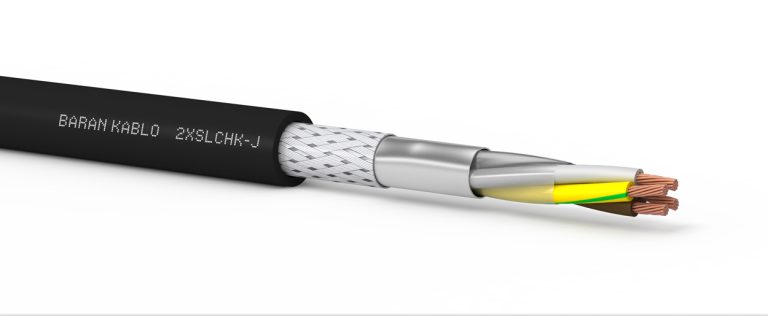

Cable Structure
| Conductor | Flexible Stranded Annealed Copper (IEC/EN 60228, VDE 0295, Class 5) |
| Insulation | XLPE Compound |
| Core Stranding | In layers |
| Colours | Outer Sheath: Grey or Black. Other colours on request Core Colours: Colored cores according to VDE 0293 |
| Outer Sheath | Halogen Free Compound (EN 50363-8 / IEC 60754-1) |
| Double-Screen | 1st Al/PET foil 2nd tinned copper braid |
Technical Specifications
| Min. Bending Radius | Fixed: up to 12 mm: 5x and up to 20 mm : 7,5x Cable Diameter Flexible: up to 12mm Ø: 10x and up to 20mm Ø: 15x Cable Diameter |
| Operating Voltage | 600/1000 V |
| Test Voltage | 4000 V |
| Temperature Range | Fixed: -40 °C ........+80 °C, Flexible: -5°C ........+70 °C |
| Halogen Free | VDE 0482-754-2 / DIN EN 60754-2 / IEC 60754-2 |
| Flame Retardancy | DIN VDE 0482-332-1-2 / DIN EN 60332-1-2 / IEC 60332-1-2 |
Technical Tables
| Damar Sayısı X Kesit (nxmm²) (Number of Veins X Section)(nxmm²) | Dış Çap mm (Outer Diameter mm) | Kablo Ağırlığı ≈ Kg/Km (Cable Weight ≈ Kg/Km) |
|||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 4 G 1,5 | 11.4 | 230 | |||||||||
| 4 G 2,5 | 12.4 | 300 | |||||||||
| 4 G 4 | 15.6 | 485 | |||||||||
| 4 G 6 | 17 | 630 | |||||||||
| 4 G 10 | 19.6 | 860 | |||||||||
| 4 G 16 | 21.6 | 1290 | |||||||||
| Damar Sayısı X Kesit (nxmm²) (Number of Veins X Section)(nxmm²) | Dış Çap mm (Outer Diameter mm) | Kablo Ağırlığı ≈ Kg/Km (Cable Weight ≈ Kg/Km) |
|||||||||
| 3x1,5+3G0,25 | 11.4 | 140 | |||||||||
| 3x2,5+3G0,50 | 12.2 | 220 | |||||||||
| 3x4+3G0,75 | 14.4 | 323 | |||||||||
| 3x6+3G0,1 | 15.7 | 420 | |||||||||
| 3x10+3G1,50 | 18 | 615 | |||||||||
| 3x16+3G2,50 | 20.2 | 819 | |||||||||
