Description

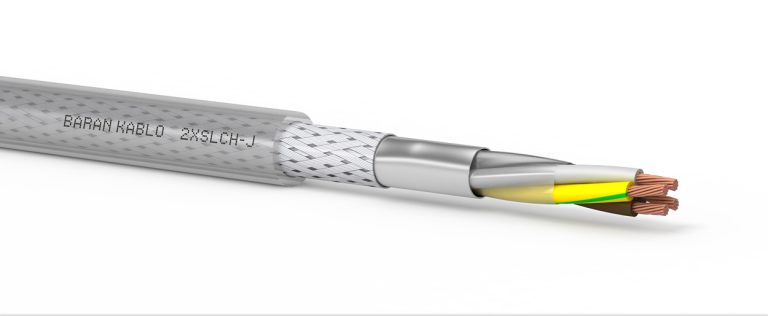

Baran Kablo’s 2XSLCH-J Servo Motor Cable is a double-shielded motor power cable specifically designed for use with frequency converters. This cable is ideal for equipment that operates effectively in wet, dry, and humid conditions in various settings such as industrial plants, machine tools, automation technologies, and production facilities. While the 2XSLCH-J model is intended for indoor applications, the 2XSLCHK-J model is equipped with features suitable for outdoor use.
These cables provide excellent, interference-free data and signal transmission in measurement and control technologies thanks to their foil and copper braid screens. Additionally, the cables contain an HFFR (Flame Retardant and Self-Extinguishing) compound, making them suitable for areas with high fire safety requirements. These features prevent the spread of flames and minimize smoke production during a fire, thereby enhancing safety during emergencies.
The 2XSLCH-J and 2XSLCHK-J cables deliver reliable solutions in industrial applications with their strong performance and high safety standards, ensuring the smooth and efficient operation of complex machines and equipment. These products are among the high-quality solutions designed by Baran Kablo for demanding industrial environments that require robust technical infrastructure.
Cable Structure
| Conductor | Flexible Stranded Annealed Copper (IEC/EN 60228, VDE 0295, Class 5) |
| Insulation | XLPE Compound |
| Core Stranding | In layers |
| Colours | Outer Sheath: Grey or Black. Other colours on request Core Colours: Colored cores according to VDE 0293 |
| Outer Sheath | Halogen Free Compound (EN 50363-8 / IEC 60754-1) |
| Double-Screen | 1st Al/PET foil 2nd tinned copper braid |
Technical Specifications
| Min. Bending Radius | Fixed: up to 12 mm: 5x and up to 20 mm : 7,5x Cable Diameter Flexible: up to 12mm Ø: 10x and up to 20mm Ø: 15x Cable Diameter |
| Operating Voltage | 600/1000 V |
| Test Voltage | 4000 V |
| Temperature Range | Fixed: -40 °C ........+80 °C, Flexible: -5°C ........+70 °C |
| Flame Retardancy | DIN VDE 0482-332-1-2 / DIN EN 60332-1-2 / IEC 60332-1-2 |
| Halogen Free | VDE 0482-754-2 / DIN EN 60754-2 / IEC 60754-2 |
Technical Tables
| Damar Sayısı X Kesit (nxmm²) (Number of Veins X Section)(nxmm²) | Dış Çap mm (Outer Diameter mm) | Kablo Ağırlığı ≈ Kg/Km (Cable Weight ≈ Kg/Km) |
|||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 4 G 1,5 | 11.4 | 230 | |||||||||
| 4 G 2,5 | 12.4 | 300 | |||||||||
| 4 G 4 | 15.6 | 485 | |||||||||
| 4 G 6 | 17 | 630 | |||||||||
| 4 G 10 | 19.6 | 860 | |||||||||
| 4 G 16 | 21.6 | 1290 | |||||||||
| Damar Sayısı X Kesit (nxmm²) (Number of Veins X Section)(nxmm²) | Dış Çap mm (Outer Diameter mm) | Kablo Ağırlığı ≈ Kg/Km (Cable Weight ≈ Kg/Km) |
|||||||||
| 3x1,5+3G0,25 | 11.4 | 140 | |||||||||
| 3x2,5+3G0,50 | 12.2 | 220 | |||||||||
| 3x4+3G0,75 | 14.4 | 323 | |||||||||
| 3x6+3G0,1 | 15.7 | 420 | |||||||||
| 3x10+3G1,50 | 18 | 615 | |||||||||
| 3x16+3G2,50 | 20.2 | 819 | |||||||||
