Description

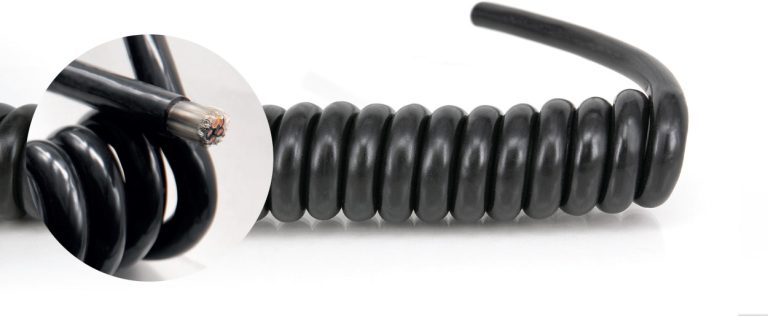

LIF12YD11Y TPE-E/PUR Spiral Cable is a specially designed cable for use in various industrial and commercial applications that require high flexibility, durability, and performance. This cable is ideal for use in moving machinery, robotic systems, and automation applications.
LIF12YD11Y TPE-E/PUR Spiral Cable offers long-lasting performance with high-quality materials and superior design, making it a reliable choice for various industrial applications.
Cable Structure
| Conductor | Flexible Stranded Annealed Copper (IEC/EN 60228, VDE 0295) |
| Insulation | TPE-E Compound |
| Core Stranding | In layers |
| Outer Sheath Color | Black RAL9005 and other colors on request |
| Basic Colors | Coloured cores according to DIN 47100 |
| Outer Sheath | PUR (EN 50363-10-2) |
| Separator Tape | Textured tape |
| Screen | Tinned Copper Wire Mesh |
| 2. Separator Tape | Textured tape |
Technical Specifications
| Min. Bending Radius | Fixed: 8 x Cable Diameter, Flexible: 15 x Cable Diameter |
| Operating Voltage | 0,14-0,22 mm² 250 V ; 0,34 mm² ≥ 500 V |
| Test Voltage | 0,14-0,22 mm² 800 V ; 0,22-1 mm² 1200 V ;1,5-2,5 mm² 2500 V |
| Temperature Range | Fixed: -50 °C ........+90 °C, Flexible: -40 °C ........+80 °C |
| Flame Retardancy | IEC/EN 60332-1-2 |
| Oil Resistance | EN 50363-10-2 |
Technical Tables
| Cable MM2 | Cable Diameter | Spiral Diameter +/-10% |
|---|---|---|
| 2x0,14 | 4.2 | 13.27 |
| 3x0,14 | 4.3 | 13.48 |
| 4x0,14 | 4.6 | 14.12 |
| 5x0,14 | 5.1 | 15.19 |
| 7x0,14 | 5.4 | 17.98 |
| 12x0,14 | 6.8 | 23.11 |
| 2x0,25 | 4.6 | 14.12 |
| 3x0,25 | 5 | 14.98 |
| 4x0,25 | 5.4 | 17.98 |
| 5x0,25 | 5.7 | 18.62 |
| 7x0,25 | 6.1 | 19.47 |
| 12x0,25 | 7.9 | 25.47 |
| 16x0,25 | 8.8 | 29.53 |
| 2x0,34 | 5.4 | 17.98 |
| 3x0,34 | 5.7 | 18.62 |
| 4x0,34 | 6.1 | 19.47 |
| 5x0,34 | 6.5 | 20.33 |
| 7x0,34 | 7 | 23.54 |
| 12x0,34 | 9.1 | 30.17 |
| 16x0,34 | 10.4 | 35.1 |
| 2x0,5 | 6.5 | 20.33 |
| 3G0,5 | 6.8 | 23.11 |
| 4G0,5 | 7.2 | 23.97 |
| 5G0,5 | 7.7 | 25.04 |
| 7G0,5 | 8.4 | 28.68 |
| 12G0,5 | 10.1 | 34.45 |
| 16G0,5 | 11.5 | 40.66 |
| 32G0,5 | 15 | 52.43 |
| 2x0,75 | 6.9 | 23.33 |
| 3G0,75 | 7.2 | 23.97 |
| 4G0,75 | 7.7 | 25.04 |
| 5G0,75 | 8.5 | 28.89 |
| 7G0,75 | 9 | 29.96 |
| 12G0,75 | 11.1 | 36.59 |
| 18G0,75 | 13.2 | 46.44 |
| 2x1 | 7.3 | 24.18 |
| 3G1 | 7.6 | 24.82 |
| 4G1 | 8.3 | 28.46 |
| 5G1 | 8.9 | 29.75 |
| 7G1 | 9.5 | 33.17 |
| 12G1 | 11.8 | 41.3 |
| 18G1 | 14 | 50.29 |
| 2x1,5 | 8.4 | 28.68 |
| 3G1,5 | 8.7 | 29.32 |
| 4G1,5 | 9.4 | 32.96 |
| 5G1,5 | 10.1 | 34.45 |
| 7G1,5 | 11 | 36.38 |
| 12G1,5 | 13.7 | 47.51 |
| 18G1,5 | 16.4 | 55.43 |
| 2x2,5 | 9.2 | 30.39 |
| 3G2,5 | 9.7 | 33.6 |
| 4G2,5 | 10.6 | 35.52 |
| 5G2,5 | 11.4 | 40.45 |
| 2x4 | 10.2 | 34.67 |
| 3G4 | 11 | 36.38 |
| 4G4 | 11.7 | 41.09 |
| 5G4 | 13.1 | 46.22 |
