Description

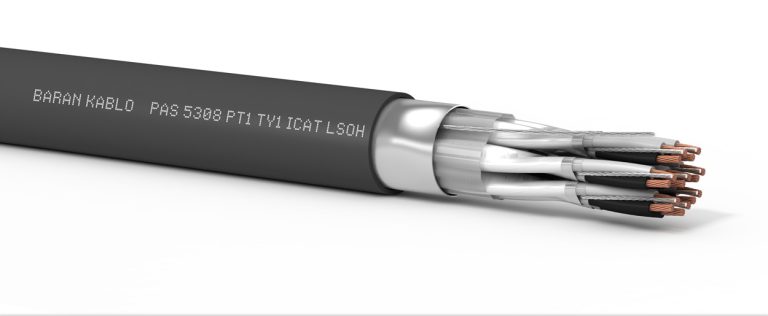

Baran Kablo’s XLPE / ICAT / LSOH / P1TY1 Instrumentation Cable is designed for use in electronic control systems, communication and telecommunication technologies, the petrochemical industry, and other commercial and industrial applications. This cable is equipped with both individual and overall shielding, providing high reliability and protection for signal transmission.
This model is manufactured using an HFFR compound (halogen-free, low smoke, flame retardant, and low toxicity self-extinguishing), which prevents the spread of flames and produces very little smoke in the event of a fire. These features minimize the emission of toxic gases during a fire and preserve visibility during emergencies, making it suitable for environments with especially high safety requirements.
The XLPE (cross-linked polyethylene) insulation material offers excellent electrical properties and high temperature resistance, while the ICAT (individual aluminum foil shielding) and LSOH (low smoke, halogen-free) jacket provide superior protection against environmental influences and mechanical stress. This combination enhances the cable’s durability against harsh environmental conditions and electromagnetic interference, making it ideal for both indoor and outdoor applications.
The XLPE / ICAT / LSOH / P1TY1 Instrumentation Cable provides a solution that meets high performance and safety standards by maintaining signal integrity in sensitive applications such as industrial control, communication networks, and chemical processing.
Cable Structure
| Conductor | Solid (class 1), stranded (class 2) or flexible (class 5) copper conductor to BS EN 60228 |
| Insulation | PE to BS EN 50290-2-23 or XLPE to BS EN 50290-2-29 |
| Core Stranding | Cores twisted to pairs , triples or quads in layers |
| Colours | Outer Sheath: Blue or Black and other colours on request Core Colours: Colour coded in accordance to PAS 5308-1” |
| Outer Sheath | LSZH (EN 50290-2-27) |
| Screen | Individual & Collective Al-PET foil Screens with Tinned Copper Drain Wire” |
Technical Specifications
| Min. Bending Radius | Fixed: 8 x Cable Diameter |
| Operating Voltage | 300 V / 500 V |
| Test Voltage | 2000 V |
| Temperature Range Fixed | Operating -15°C to +90°C, Installation 0°C to +50°C |
| Flame Retardancy | IEC 60332-1-2 |
| Smoke Density | IEC/EN 61034-1&2 |
Technical Tables
| P1TY1 ICAT XLPE / ICAT / LSOH | |||
|---|---|---|---|
| COPPER CLASS | NUMBER OF PER | DIAMETER | WEIGHT |
| CLASS 1 | 2x2x0,50 | 8.8 | 103 |
| 5x2x0,50 | 11.2 | 162 | |
| 10x2x0,50 | 15.3 | 292 | |
| 15x2x0,50 | 18.5 | 421 | |
| 20x2x0,50 | 20.76 | 537 | |
| CLASS 1 | 2x2x1 | 10.7 | 150 |
| 5x2x1 | 13.9 | 256 | |
| 10x2x1 | 19.1 | 474 | |
| 15x2x1 | 23.4 | 702 | |
| 20x2x1 | 26.2 | 904 | |
| CLASS 2 | 2x2x1,5 | 12.4 | 197 |
| 5x2x1,5 | 16.2 | 336 | |
| 10x2x1,5 | 22.4 | 634 | |
| 15x2x1,5 | 27.2 | 921 | |
| 20x2x1,5 | 30.4 | 1187 | |
| CLASS 2 | 2x2x2,5 | 14 | 265 |
| 5x2x2,5 | 18.6 | 477 | |
| 10x2x2,5 | 22.62 | 904 | |
| 15x2x2,5 | 31.1 | 1318 | |
| 20x2x2,5 | 35 | 1721 | |
| CLASS 5 | 2x2x0,50 | 10 | 114 |
| 5x2x0,50 | 12.7 | 175 | |
| 10x2x0,50 | 17.4 | 317 | |
| 15x2x0,50 | 21.1 | 460 | |
| 20x2x0,50 | 23.6 | 580 | |
