Description

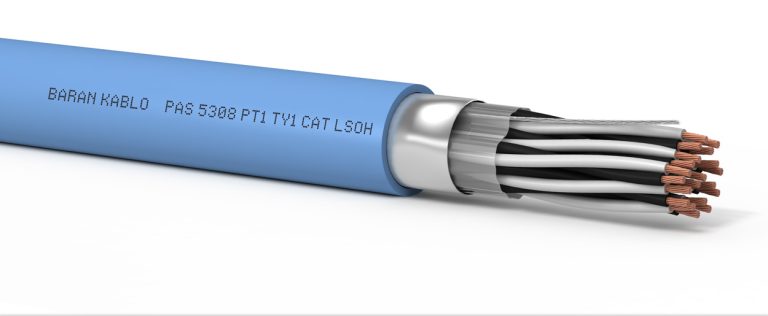

Baran Kablo’s XLPE / CAT / LSOH / P1TY1 Instrumentation Cable is designed for use in electronic control systems, communication and telecommunication technologies, the petrochemical sector, and other commercial and industrial applications. This generally shielded cable provides excellent performance and reliability in signal transmission.
Manufactured using HFFR (halogen-free, low smoke, flame-retardant, and low-toxicity self-extinguishing) compounds, the cable prevents the spread of flames and minimizes the release of toxic gases and smoke in the event of a fire, thereby enhancing safety and facilitating efficient evacuation during emergencies. These features make the cable ideal for environments with stringent safety requirements.
The XLPE / CAT / LSOH / P1TY1 Instrumentation Cable is particularly well-suited for areas with a high risk of fire and in locations with high human occupancy. Whether used in electronic control panels, communication networks, or industrial process control systems, this cable delivers reliable and uninterrupted performance while maintaining signal integrity and resisting environmental impacts. It is an excellent choice for a wide range of industrial and commercial applications.
Cable Structure
| Conductor | Solid (class 1), stranded (class 2) or fl exible (class 5) copper conductor to BS EN 60228 |
| Insulation | PE to BS EN 50290-2-23 or XLPE to BS EN 50290-2-29 |
| Core Stranding | Cores twisted to pairs , triples or quads in layers |
| Colours | Outer Sheath: Blue or Black and other colours on request Core Colours: Colour coded in accordance to PAS 5308-1 |
| Outer Sheath | LSZH (EN 50290-2-27) |
| Screen | Collective Al-PET foil Screen with Tinned Copper Drain Wire |
Technical Specifications
| Min. Bending Radius | Fixed: 8 x Cable Diameter |
| Operating Voltage | 300 V / 500 V |
| Test Voltage | 2000 V |
| Temperature Range Fixed | Operating -15°C to +90°C, Installation 0°C to +50°C |
| Flame Retardancy | IEC 60332-1-2 |
| Smoke Density | IEC/EN 61034-1 |
Technical Tables
| P1TY1 XLPE / CAT / LSOH | |||
|---|---|---|---|
| COPPER CLASS | NUMBER OF PER | DIAMETER | WEIGHT |
| CLASS 1 | 1x2x0,50 | 5.4 | 35 |
| 2x2x0,50 | 6.2 | 52 | |
| 5x2x0,50 | 10.4 | 130 | |
| 10x2x0,50 | 13.8 | 228 | |
| 15x2x0,50 | 16.5 | 320 | |
| 20x2x0,50 | 18.5 | 410 | |
| CLASS 1 | 1x2x1 | 6.5 | 55 |
| 2x2x1 | 7.5 | 84 | |
| 5x2x1 | 12.7 | 211 | |
| 10x2x1 | 17.2 | 380 | |
| 15x2x1 | 20.77 | 550 | |
| 20x2x1 | 23.5 | 720 | |
| CLASS 2 | 1x2x1,5 | 7.4 | 70 |
| 2x2x1,5 | 8.7 | 113 | |
| 5x2x1,5 | 14.8 | 290 | |
| 10x2x1,5 | 20 | 520 | |
| 15x2x1,5 | 24.5 | 768 | |
| 20x2x1,5 | 27.2 | 980 | |
| CLASS 2 | 1x2x2,5 | 8.2 | 95 |
| 2x2x2,5 | 9.8 | 160 | |
| 5x2x2,5 | 16.8 | 406 | |
| 10x2x2,5 | 22.9 | 760 | |
| 15x2x2,5 | 28 | 1124 | |
| 20x2x2,5 | 31.4 | 1453 | |
| CLASS 5 | 1x2x0,50 | 6 | 40 |
| 2x2x0,50 | 6.8 | 57 | |
| 5x2x0,50 | 11.6 | 135 | |
| 10x2x0,50 | 15.6 | 234 | |
| 15x2x0,50 | 18.8 | 332 | |
| 20x2x0,50 | 20.89 | 416 | |
