Description
Baran Kablo’s Trommel PUR-HF LV Reeling Cable is a drum winding cable designed specifically for mobile applications under mechanical stress. This cable is developed for use in wet, dry, and humid outdoor conditions, meeting high mechanical demands.
Its most striking feature is the special halogen-free PUR (Polyurethane) sheath that protects the cable structure against oil, ozone, alkaline substances, and UV radiation, thereby enhancing its durability against harsh environmental factors and chemical effects. The PUR sheath also provides superior protection against physical impacts, making the cable ideal for applications that involve repeated reeling.
Trommel PUR-HF LV Reeling Cable is perfect for industrial applications, mobile equipment, and outdoor facilities where heavy usage is expected. With its high flexibility and durability, it delivers reliable performance in continuously moving systems. This product is especially well-suited for energy transmission in extreme conditions.

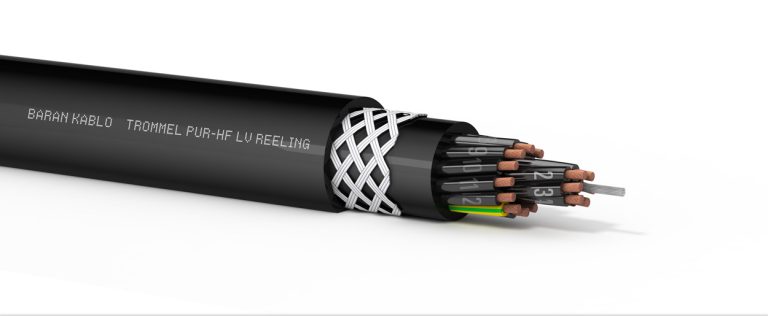

Cable Structure
| Conductor | Flexible Stranded Annealed Copper (IEC/EN 60228, VDE 0295, Class 5) |
| Insulation | Special polyester based compound |
| Core Stranding | In layers |
| Outer Sheath Color | Black and other colors on request |
| Vein Colors | Coloured cores according to VDE 0293 |
| Outer Sheath | HF-PUR |
| Screen | Tinned Copper Drain Wire Al-PET Foil Grid |
| Supporting Element | Anti-twist textile braid |
| Inner Sheath | HF-PUR |
| Supporting Element | Textile based central strength element |
Technical Specifications
| Min. Bending Radius | Fixed: 6 x Cable Diameter, Flexible: 8 x Cable Diameter |
| Operating Voltage | 600 V / 1000 V |
| Test Voltage | 2500 V |
| Temperature Range | Fixed: -50 °C ........+90 °C, Flexible: -40 °C ........+80 °C |
| Flame Retardancy | IEC/EN 60332-2-1 |
| Oil Resistance | EN/IEC 60811-2-1, DIN VDE 0473-811-2-1 |
| Max Torsion | ±25º/m |
| Festoon Cruising Speed | 200 m/min. |
| Drag Chain Movement Speed | 200 m/min. |
