Description

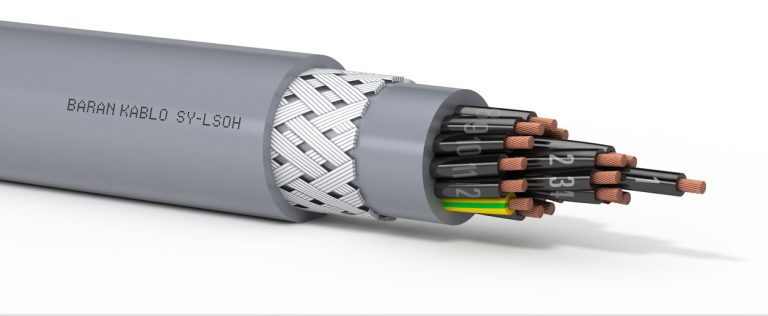

Baran Kablo’s SY-LSOH-HSLHSH-HSLHQH / HFFR Control Cable is an excellent solution for various industrial applications. This halogen-free flexible cable is ideal for use in electrical equipment, electronic control systems, automation technologies, machinery, and the chemical industry. It delivers high performance in a variety of environments, including wet, dry, and humid indoor spaces.
The cable’s HFFR composition, with its flame-retardant and self-extinguishing properties, offers a solution that meets high safety standards—critical in areas with stringent fire safety requirements. Additionally, it is equipped with a galvanized steel wire mesh that not only protects the cable from mechanical loads and external damage but also provides excellent protection against electromagnetic interference through magnetic screening.
With the use of a UV-protected compound, these cables can also be effectively used in outdoor applications where they are exposed to direct sunlight. This feature protects the cable from UV-induced damage, making it ideal for long-term outdoor use.
Baran Kablo’s product offers a high-security, durable solution suitable for various environments, providing reliable performance for your industrial needs with its robust construction.
Cable Structure
| Conductor | Flexible Stranded Annealed Copper (IEC/EN 60228, VDE 0295, Class 5) |
| Insulation | halogen-free polymer compound (EN 50290-2-26, VDE 0207-363-7) |
| Core Stranding | In layers |
| Colours | Outer Sheath: Grey RAL7001 and other colours on request Core Colours: HSLHSH-JZ type; White numbered black cores with yellow- green earth conductor. HSLHSH-OZ type; White numbered black cores without yellow-green earth conductor. |
| Outer Sheath | halogen-free polymer compound (DIN EN 50363-8, VDE 0207-363-8) |
| Inner Sheat | HFFR compound |
| Wrapping | PETP foil |
| Screen | Galvanised Steel Wire Braid |
Technical Specifications
| Min. Bending Radius | Fixed: 8 x Cable Diameter, Flexible: 15 x Cable Diameter |
| Operating Voltage | 300 V / 500 V |
| Test Voltage | 2500 V |
| Temperature Range | Fixed: -30 °C ........+70 °C, Flexible: -5 °C ........+70 °C |
| Flame Retardancy | DIN VDE 0482-332-1-2 / DIN EN 60332-1-2 / IEC 60332-1-2 |
| Smoke Density | IEC 61034-1&2 |
| Halogen Free | DIN VDE 0482-754-1 / DIN EN 60754-1 / IEC 60754-1 |
Technical Tables
| Damar Sayısı X Kesit (nxmm²) (Number of Veins X Section)(nxmm²) | Dış Çap mm (Outer Diameter mm) | Kablo Ağırlığı ≈ Kg/Km (Cable Weight ≈ Kg/Km) |
|---|---|---|
| 2 x 0,5 | 5,0 | 62 |
| 3 G 0,5 | 5,2 | 70 |
| 4 G 0,5 | 5,7 | 86 |
| 5 G 0,5 | 6,1 | 98 |
| 6 G 0,5 | 6,8 | 114 |
| 7 G 0,5 | 6,8 | 117 |
| 8 G 0,5 | 7,8 | 146 |
| 9 G 0,5 | 8,3 | 163 |
| 10 G 0,5 | 8,7 | 177 |
| 12 G 0,5 | 9,2 | 198 |
| 14 G 0,5 | 9,6 | 217 |
| 16 G 0,5 | 10,1 | 239 |
| 18 G 0,5 | 10,6 | 266 |
| 19 G 0,5 | 10,6 | 270 |
| 20 G 0,5 | 11,1 | 289 |
| 24 G 0,5 | 12,7 | 361 |
| 25 G 0,5 | 12,9 | 375 |
| 27 G 0,5 | 12,9 | 381 |
| 30 G 0,5 | 13,4 | 408 |
| 32 G 0,5 | 14,1 | 441 |
| 34 G 0,5 | 14,6 | 474 |
| 36 G 0,5 | 14,6 | 481 |
| 37 G 0,5 | 14,6 | 484 |
| 40 G 0,5 | 15,5 | 535 |
| 42 G 0,5 | 16,5 | 590 |
| 45 G 0,5 | 16,7 | 613 |
| 50 G 0,5 | 17,1 | 652 |
| 52 G 0,5 | 17,1 | 659 |
| 54 G 0,5 | 17,6 | 689 |
| 56 G 0,5 | 17,6 | 696 |
| 2 x 0,75 | 5,4 | 72 |
| 3 G 0,75 | 5,6 | 87 |
| 4 G 0,75 | 6,1 | 102 |
| 5 G 0,75 | 6,9 | 119 |
| 6 G 0,75 | 7,4 | 142 |
| 7 G 0,75 | 7,4 | 147 |
| 8 G 0,75 | 8,5 | 178 |
| 9 G 0,75 | 9,3 | 206 |
| 10 G 0,75 | 9,7 | 224 |
| 12 G 0,75 | 10,0 | 243 |
| 14 G 0,75 | 10,5 | 268 |
| 16 G 0,75 | 11,0 | 300 |
| 18 G 0,75 | 11,8 | 335 |
| 19 G 0,75 | 11,8 | 340 |
| 20 G 0,75 | 12,4 | 366 |
| 24 G 0,75 | 14,1 | 455 |
| 25 G 0,75 | 14,4 | 473 |
| 27 G 0,75 | 14,4 | 483 |
| 30 G 0,75 | 14,9 | 524 |
| 32 G 0,75 | 15,4 | 557 |
| 34 G 0,75 | 16,0 | 594 |
| 36 G 0,75 | 16,0 | 604 |
| 37 G 0,75 | 16,0 | 609 |
| 40 G 0,75 | 17,2 | 688 |
| 2 x 1 | 5,7 | 86 |
| 3 G 1 | 6,0 | 99 |
| 4 G 1 | 6,7 | 118 |
| 5 G 1 | 7,3 | 143 |
| 6 G 1 | 7,9 | 164 |
| 7 G 1 | 7,9 | 171 |
| 8 G 1 | 9,3 | 215 |
| 9 G 1 | 9,9 | 240 |
| 10 G 1 | 10,4 | 261 |
| 12 G 1 | 10,7 | 290 |
| 14 G 1 | 11,4 | 326 |
| 16 G 1 | 12,0 | 360 |
| 18 G 1 | 12,6 | 401 |
| 19 G 1 | 12,6 | 408 |
| 20 G 1 | 13,3 | 438 |
| 24 G 1 | 15,1 | 545 |
| 25 G 1 | 15,4 | 564 |
| 27 G 1 | 15,4 | 578 |
| 30 G 1 | 15,9 | 623 |
| 32 G 1 | 16,7 | 678 |
| 34 G 1 | 17,3 | 723 |
| 36 G 1 | 17,3 | 736 |
| 37 G 1 | 17,3 | 743 |
| 2 x 1,5 | 6,8 | 111 |
| 3 G 1,5 | 7,2 | 134 |
| 4 G 1,5 | 7,8 | 159 |
| 5 G 1,5 | 8,5 | 186 |
| 6 G 1,5 | 9,5 | 224 |
| 7 G 1,5 | 9,5 | 234 |
| 8 G 1,5 | 10,8 | 289 |
| 9 G 1,5 | 11,8 | 331 |
| 10 G 1,5 | 12,3 | 360 |
| 12 G 1,5 | 12,7 | 398 |
| 14 G 1,5 | 13,4 | 442 |
| 16 G 1,5 | 14,3 | 502 |
| 18 G 1,5 | 15,0 | 554 |
| 19 G 1,5 | 15,0 | 564 |
| 20 G 1,5 | 16,0 | 615 |
| 24 G 1,5 | 17,9 | 752 |
| 2 x 2,5 | 7,6 | 148 |
| 3 G 2,5 | 8,1 | 175 |
| 4 G 2,5 | 9,0 | 219 |
| 5 G 2,5 | 9,9 | 259 |
| 6 G 2,5 | 10,8 | 307 |
| 7 G 2,5 | 10,8 | 323 |
| 8 G 2,5 | 12,6 | 406 |
| 9 G 2,5 | 13,7 | 463 |
| 10 G 2,5 | 14,3 | 503 |
| 12 G 2,5 | 14,7 | 560 |
| 14 G 2,5 | 15,5 | 625 |
| 16 G 2,5 | 16,5 | 710 |
| 18 G 2,5 | 17,4 | 784 |
| 19 G 2,5 | 17,4 | 800 |
| 2 x 4 | 8,7 | 197 |
| 3 G 4 | 9,4 | 242 |
| 4 G 4 | 10,3 | 295 |
| 5 G 4 | 11,5 | 363 |
| 6 G 4 | 12,5 | 431 |
| 7 G 4 | 12,5 | 457 |
| 8 G 4 | 14,6 | 571 |
| 9 G 4 | 15,9 | 651 |
| 10 G 4 | 16,5 | 714 |
| 12 G 4 | 17,1 | 792 |
| 2 x 6 | 10,3 | 270 |
| 3 G 6 | 11,2 | 339 |
| 4 G 6 | 12,3 | 421 |
| 5 G 6 | 13,7 | 511 |
| 6 G 6 | 14,9 | 607 |
| 2 x 10 | 12,4 | 404 |
| 3 G 10 | 13,2 | 499 |
| 4 G 10 | 14,7 | 632 |
| 5 G 10 | 16,4 | 778 |
| 2 x 16 | 15,0 | 590 |
| 3 G 16 | 16,2 | 754 |
| 4 G 16 | 17,8 | 945 |
