Description

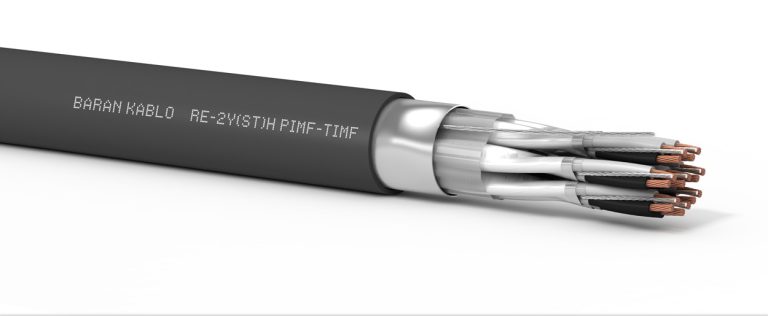

Baran Kablo’s RE‑2Y(St)H‑fl PIMF‑TIMF Instrumentation Cable delivers an exceptional solution for analog and digital signal transmission in both indoor and outdoor applications across sectors such as electronic control systems, communications, and petrochemicals. Engineered to meet the highest safety requirements, this cable is ideal for environments demanding reliable, interference‑free performance.
Featuring PIMF (Pairs in Metal Foil) and TIMF (Triads in Metal Foil) constructions, each signal pair and triad is individually shielded with metal foil to provide superior protection against electromagnetic interference. This design is critical for preserving signal integrity and ensuring uninterrupted transmission in high‑EMI environments.
Constructed with an HFFR (Halogen‑Free Flame Retardant) compound, the cable resists flame propagation and emits minimal smoke in the event of fire—maintaining visibility and enhancing safety during emergencies. Robust and durable, the RE‑2Y(St)H‑fl PIMF‑TIMF Instrumentation Cable meets stringent fire‑safety standards and delivers dependable performance for mission‑critical industrial and commercial installations.
Cable Structure
| Conductor | Stranded Annealed Copper according to IEC/EN 60228, Class 2 (Class 1 or Class 5 and/or tinned upon request) |
| Insulation | PE composition according to EN50290-2-23 |
| Core Stranding | Shielded pairs, triples twisted in layers |
| Outer Sheath Color | Blue or Black and other colors on request |
| Vein Colors | Numbered Pairs: Black/White, Numbered Triples: Black/White/Red and Numbered Quads: Black/White/Red/Blue |
| Outer Sheath | HFFR Compound EN 50290-2-27 |
| Screen | Tinned Copper Drain Wire Al-PET Foil Grids |
Technical Specifications
| Min. Bending Radius | Fixed: 7.5 x Cable Diameter |
| Operating Voltage | 500 V |
| Test Voltage | 2000 V |
| Temperature Range Fixed | Fixed -40°C / +70°C, Flexible - 5°C / +50°C |
| Flame Retardancy | IEC 60332-1-2 / IEC 60332-3-24 Cat. C |
| Smoke Density | IEC 61034-1&2 |
| Halogen Free | DIN VDE 0482-754-1 / DIN EN 60754-1 / IEC 60754-1 |
Technical Tables
| COPPER CLASS | NUMBER OF PER | DIAMETER | WEIGHT |
|---|---|---|---|
| CLASS 2 | 2x2x0,50 | 10.20 | 120 |
| CLASS 2 | 3x2x0,50 | 10.80 | 120 |
| CLASS 2 | 4x2x0,50 | 11.80 | 150 |
| CLASS 2 | 5x2x0,50 | 13.10 | 190 |
| CLASS 2 | 6x2x0,50 | 14.30 | 226 |
| CLASS 2 | 10x2x0,50 | 17.60 | 325 |
| CLASS 2 | 15x2x0,50 | 21.50 | 480 |
| CLASS 2 | 2x2x0,75 | 10.90 | 142 |
| CLASS 2 | 3x2x0,75 | 11.60 | 145 |
| CLASS 2 | 4x2x0,75 | 12.90 | 190 |
| CLASS 2 | 5x2x0,75 | 14.10 | 228 |
| CLASS 2 | 6x2x0,75 | 15.50 | 285 |
| CLASS 2 | 10x2x0,75 | 19.10 | 414 |
| CLASS 2 | 2x2x1 | 11.40 | 164 |
| CLASS 2 | 3x2x1 | 12.20 | 170 |
| CLASS 2 | 4x2x1 | 13.60 | 220 |
| CLASS 2 | 5x2x1 | 14.80 | 270 |
| CLASS 2 | 6x2x1 | 16.30 | 335 |
| CLASS 2 | 10x2x1 | 20.14 | 492 |
| CLASS 2 | 2x2x1,5 | 12.20 | 190 |
| CLASS 2 | 3x2x1,5 | 13.20 | 202 |
| CLASS 2 | 4x2x1,5 | 14.40 | 256 |
| CLASS 2 | 5x2x1,5 | 16.00 | 323 |
| CLASS 2 | 6x2x1,5 | 17.50 | 393 |
| CLASS 2 | 2x2x2,5 | 14.70 | 277 |
| CLASS 2 | 3x2x2,5 | 15.90 | 300 |
| CLASS 2 | 4x2x2,5 | 17.50 | 383 |
| CLASS 2 | 5x2x2,5 | 19.40 | 486 |
| CLASS 2 | 6x2x2,5 | 21.40 | 602 |
