Description

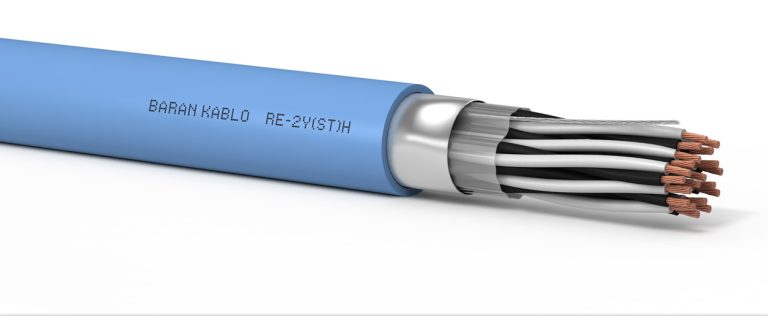

Baran Kablo’s RE-2Y(st)H-fl Instrumentation Cable is designed for use in various fields such as electronic control systems, communication technologies, and the petrochemical industry, both indoors and outdoors. This cable is developed to provide high performance in analog and digital signal transmission.
The RE-2Y(st)H-fl model is equipped with an HFFR (Flame Retardant and Self-Extinguishing) compound. This feature prevents the spread of flames and produces very little smoke in the event of a fire, thereby enhancing safety by preserving visibility during emergencies. This cable is particularly suitable for environments with high fire safety requirements.
Additionally, this instrumentation cable offers superior protection against electromagnetic interference, making it ideal for technically demanding and safety-critical applications. When used in electronic control panels, communication networks, and petrochemical facilities, RE-2Y(st)H-fl ensures uninterrupted and reliable signal transmission, supporting the efficient operation of complex systems.
Cable Structure
| Conductor | Stranded Annealed Copper according to IEC/EN 60228, Class 2 (Class 1 or Class 5 and/or tinned upon request) |
| Insulation | From XLPE to BS EN 50290-2-29 |
| Core Stranding | Cores are twisted in pairs, pairs are twisted in layers |
| Outer Sheath Color | Blue or Black and other colors on request |
| Vein Colors | Numbered Pairs: Black/White, Numbered Triples: Black/White/Red and Numbered Quads: Black/White/Red/Blue |
| Outer Sheath | HFFR Compound EN 50290-2-27 |
| Screen | Tinned Copper Drain Wire Al-PET Foil Grid |
| Binding Tape | PETP foil |
Technical Specifications
| Min. Bending Radius | Fixed: 7.5 x Cable Diameter |
| Operating Voltage | 500 V |
| Test Voltage | 2000 V |
| Temperature Range Fixed | Fixed -40°C / +70°C, Flexible - 5°C / +50°C |
| Flame Retardancy | IEC 60332-1-2 / IEC 60332-3-24 Cat. C |
| Smoke Density | IEC 61034-1&2 |
| Halogen Free | DIN VDE 0482-754-1 / DIN EN 60754-1 / IEC 60754-1 |
Technical Tables
| COPPER CLASS | NUMBER OF PER | DIAMETER | WEIGHT |
|---|---|---|---|
| CLASS 2 | 1x2x0,50 | 6.2 | 48.00 |
| CLASS 2 | 2x2x0,50 | 7.3 | 64.00 |
| CLASS 2 | 3x2x0,50 | 9.8 | 96.00 |
| CLASS 2 | 4x2x0,50 | 10.7 | 119.00 |
| CLASS 2 | 5x2x0,50 | 11.7 | 145.00 |
| CLASS 2 | 6x2x0,50 | 12.9 | 185.00 |
| CLASS 2 | 10x2x0,50 | 15.8 | 263.00 |
| CLASS 2 | 15x2x0,50 | 19 | 376.00 |
| CLASS 2 | 20x2x0,50 | 21.3 | 476.00 |
| CLASS 2 | 1x2x0,75 | 6.6 | 57.00 |
| CLASS 2 | 2x2x0,75 | 7.7 | 78.00 |
| CLASS 2 | 3x2x0,75 | 10.5 | 117.00 |
| CLASS 2 | 4x2x0,75 | 11.5 | 145.00 |
| CLASS 2 | 5x2x0,75 | 12.7 | 186.00 |
| CLASS 2 | 6x2x0,75 | 13.8 | 227.00 |
| CLASS 2 | 10x2x0,75 | 17 | 327.00 |
| CLASS 2 | 15x2x0,75 | 20.8 | 482.00 |
| CLASS 2 | 1x2x1 | 7.1 | 70.00 |
| CLASS 2 | 2x2x1 | 8.1 | 90.00 |
| CLASS 2 | 3x2x1 | 11 | 135.00 |
| CLASS 2 | 4x2x1 | 12.1 | 170.00 |
| CLASS 2 | 5x2x1 | 13.4 | 215.00 |
| CLASS 2 | 6x2x1 | 14.5 | 262.00 |
| CLASS 2 | 10x2x1 | 18.15 | 390.00 |
| CLASS 2 | 1x2x1,5 | 7.5 | 80.00 |
| CLASS 2 | 2x2x1,5 | 8.6 | 108.00 |
| CLASS 2 | 3x2x1,5 | 11.8 | 160.00 |
| CLASS 2 | 4x2x1,5 | 13.1 | 210.00 |
| CLASS 2 | 5x2x1,5 | 14.3 | 260.00 |
| CLASS 2 | 6x2x1,5 | 15.8 | 325.00 |
| CLASS 2 | 10x2x1,5 | 19.5 | 476.00 |
| CLASS 2 | 1x2x2,5 | 8.8 | 113.00 |
| CLASS 2 | 2x2x2,5 | 10.4 | 165.00 |
| CLASS 2 | 3x2x2,5 | 14.3 | 245.00 |
| CLASS 2 | 4x2x2,5 | 15.9 | 323.00 |
| CLASS 2 | 5x2x2,5 | 17.4 | 403.00 |
| CLASS 2 | 6x2x2,5 | 19.2 | 505.00 |
