Description

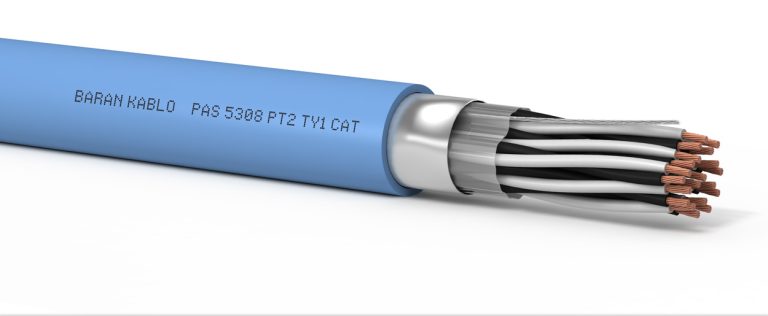

Baran Kablo’s PVC / CAT / PVC / P2TY1 Instrumentation Cable is specifically designed for signal transmission in electronic control systems, panels, communication and telecommunication technologies, the petrochemical sector, and a wide range of commercial and industrial applications. This cable is equipped with general shielding, providing excellent protection against electromagnetic interference and thereby preserving data integrity and signal quality.
The PVC / CAT / PVC / P2TY1 model is manufactured using high-quality PVC materials to deliver superior performance and durability. Its cable structure exhibits high resistance to harsh environmental conditions and mechanical stresses, making it ideal for use in various environments.
This instrumentation cable is particularly suited for applications requiring precise measurement and control. It can be reliably used in electronic control systems, communication infrastructures, and chemical processing facilities. Baran Kablo’s product serves as a critical component for the continuity and safety of industrial operations and is designed to meet high quality standards.
Cable Structure
| Conductor | Solid (class 1), stranded (class 2) or flexible (class 5) copper conductor to BS EN 60228 |
| Insulation | PVC (EN 50290-2-21) |
| Core Stranding | The cores are twisted in layers in pairs, triplets and quadruplets. |
| Outer Sheath Color | Blue or Black and other colors on request |
| Vein Colors | Colour coded as per PAS 5308-1 |
| Outer Sheath | PVC (EN 50290-2-22 |
| Screen | Tinned Copper Earth Wire Bulk Al-PET Foil Grids |
Technical Specifications
| Min. Bending Radius | Fixed: 8 x Cable Diameter |
| Operating Voltage | 300 V / 500 V |
| Test Voltage | 2000 V |
| Temperature Range Fixed | Operating -15°C to +65°C, Installation 0°C to +50°C |
| Flame Retardancy | IEC 60332-1-2 |
Technical Tables
| P2TY1 PVC / CAT / PVC | |||
|---|---|---|---|
| COPPER CLASS | NUMBER OF PER | DIAMETER | WEIGHT |
| CLASS 5 | 1x2x0,50 | 6 | 43 |
| 2x2x0,50 | 6.8 | 64 | |
| 5x2x0,50 | 11.4 | 146 | |
| 10x2x0,50 | 15.4 | 262 | |
| 15x2x0,50 | 18.6 | 376 | |
| 20x2x0,50 | 20.9 | 487 | |
| CLASS 5 | 1x2x0,75 | 6.4 | 51 |
| 2x2x0,75 | 7.3 | 79 | |
| 5x2x0,75 | 12.3 | 180 | |
| 10x2x0,75 | 16.8 | 334 | |
| 15x2x0,75 | 20.4 | 480 | |
| 20x2x0,75 | 22.8 | 622 | |
| CLASS 2 | 1x2x1,5 | 7.4 | 74 |
| 2x2x1,5 | 8.7 | 123 | |
| 5x2x1,5 | 14.6 | 305 | |
| 10x2x1,5 | 20 | 571 | |
| 15x2x1,5 | 24.3 | 833 | |
| 20x2x1,5 | 27.2 | 1077 | |
| CLASS 2 | 1x2x2,5 | 8.2 | 100 |
| 2x2x2,5 | 9.7 | 171 | |
| 5x2x2,5 | 16.8 | 436 | |
| 10x2x2,5 | 23 | 822 | |
| 15x2x2,5 | 28.1 | 1217 | |
| 20x2x2,5 | 31.4 | 1577 | |
