Description

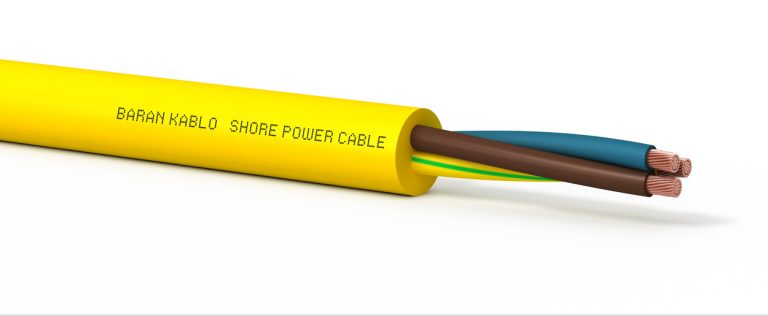

Baran Kablo’s Oil‑Ozone‑UV Resistant 0.6‑kV Shore Power Cable is specifically engineered to deliver safe, reliable power to vessels while docked. Rated for 0.6 kV, this shore power cable is ideal for supplying lighting, HVAC, and other electrical systems aboard ships. Its specialized jacket material provides exceptional resistance to oil, ozone, and ultraviolet (UV) radiation—ensuring high performance and durability even under harsh marine and port conditions.
The Oil‑Ozone‑UV Resistant 0.6‑kV Shore Power Cable offers superior protection against environmental stressors while retaining flexibility over extended service life. It withstands oil spills, ozone degradation, and UV exposure, enhancing reliability in maritime environments. By enabling uninterrupted, secure energy transfer between vessel and shore, this cable supports sustainable port operations. It is the perfect solution for operators seeking dependable power delivery and improved operational efficiency in the marine industry.
Cable Structure
| Conductor | Flexible Stranded Annealed Copper to IEC/EN 60228, Class 5 (Tinned on request) |
| Insulation | PVC or PUR compound |
| Core Stranding | In layers |
| Colours | Outer Sheath: Yellow or Black and other colours on request Core Colours: Colored cores according to HD 308 S2 |
| Outer Sheath | PUR |
| Inner Sheath | PVC or PUR |
Technical Specifications
| Min. Bending Radius | 8 x Cable Diameter |
| Operating Voltage | 600 V / 1000 V |
| Test Voltage | 3500 V |
| Temperature Range | Sabit: -40°C / + 90°C |
| Flame Retardancy | IEC/EN 60332-1-2 |
| Halogen Free | IEC/ EN 60754-2 |
| Oil Resistance | EN/IEC 60811-2-1, DIN VDE 0473-811-2-1 |
| Ozone Resistance | EN 50363-2-1 |
| UV Resistance | EN 50289-4-17 |
