Description

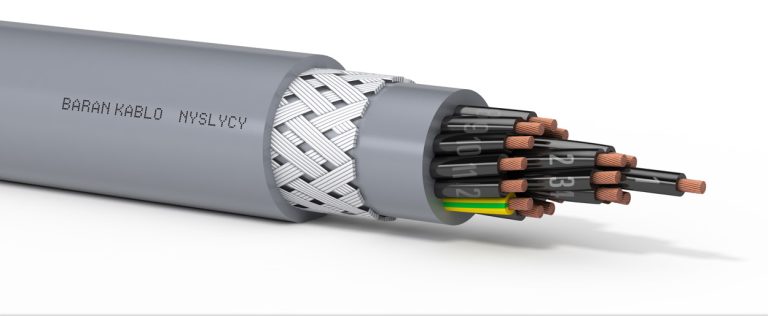

Baran Kablo’s NYSLYCY – YSLYCY PVC Control Cable is specifically designed for demanding industrial environments. Known as an oil-resistant cable, this product delivers outstanding performance in oily conditions as well as in humid or wet environments. Also referred to as a control cable, it is widely used in plant manufacturing, power plants, and automation technologies.
Interested in: YSLY Control Cable YY-YSLY PVC
This control cable is manufactured as a blended cable with tinned copper wire braid. Its braided construction offers excellent protection against electromagnetic interference and minimizes the gap between the inner jacket’s circular conductor strands. These features ensure that the cable is both flexible and durable, delivering reliable performance in industrial applications.
The YSLYCY cable is ideal for use in dry, humid, and wet environments. Thanks to its soft and flexible characteristics, installation is easy and practical. It demonstrates high durability even under moderate mechanical loads, maintaining performance over long-term use.
Baran Kablo’s NYSLYCY – YSLYCY PVC Control Cable provides the reliability and flexibility you need in your industrial projects. With its superior protection against oil and other external factors, this cable offers the ideal solution for even the harshest conditions. For more information and solution suggestions, please contact us and discover the products that make a difference in quality and durability!
Cable Structure
| Conductor | Flexible Stranded Annealed Copper (IEC/EN 60228, VDE 0295, Class 5) |
| Insulation | PVC (EN 50363-3, VDE 0207-363-3) |
| Core Stranding | In layers |
| Colours | Outer Sheath: Grey RAL7001 and other colours on request |
| Core Colours | -JZ type; White numbered black cores with yellow-green earth conductor. -OZ type; White numbered black cores without yellow-green earth conductor. -JB type; Colored cores according to VDE 0293 with yellow-green earth conductor -OB type; Colored cores according to VDE 0293 without yellow-green earth conductor |
| Dış Kılıf | Special PVC (EN 50363-4-1, VDE 0207-363-4-1) |
| Inner Sheath | PVC |
| Screen | Tinned Copper Wire Braid |
Technical Specifications
| Min. Bending Radius | Fixed: 8 x Cable Diameter, Flexible: 15 x Cable Diameter |
| Operating Voltage | 300 V / 500 V |
| Test Voltage | 3000 V |
| Temperature Range | Fixed -30 °C ........+70 °C, Flexible: -5 °C ........+70 °C |
| Flame Retardancy | IEC/EN 60332-1 |
| Oil Resistance | IRM 902(4h,70°C) |
Technical Tables
| Damar Sayısı X Kesit (nxmm²) (Number of Veins X Section)(nxmm²) | Dış Çap mm (Outer Diameter mm) | Kablo Ağırlığı ≈ Kg/Km (Cable Weight ≈ Kg/Km) |
|---|---|---|
| 2 x 0,5 | 6,4 | 62,6 |
| 3 G 0,5 | 6,7 | 70,3 |
| 4 G 0,5 | 7,2 | 83,4 |
| 5 G 0,5 | 7,7 | 96 |
| 6 G 0,5 | 8,2 | 110,4 |
| 7 G 0,5 | 8,2 | 113,7 |
| 8 G 0,5 | 9,4 | 144,5 |
| 9 G 0,5 | 10,0 | 162,9 |
| 10 G 0,5 | 10,4 | 177,7 |
| 12 G 0,5 | 10,7 | 192,1 |
| 14 G 0,5 | 11,3 | 216,8 |
| 16 G 0,5 | 11,9 | 238,1 |
| 18 G 0,5 | 12,4 | 262,7 |
| 19 G 0,5 | 12,4 | 266,1 |
| 20 G 0,5 | 12,9 | 287,6 |
| 24 G 0,5 | 14,6 | 359 |
| 25 G 0,5 | 14,8 | 372,4 |
| 27 G 0,5 | 14,8 | 379,2 |
| 30 G 0,5 | 15,3 | 406,7 |
| 32 G 0,5 | 15,8 | 433,1 |
| 34 G 0,5 | 16,6 | 469,4 |
| 36 G 0,5 | 16,6 | 476,1 |
| 37 G 0,5 | 16,6 | 479,5 |
| 40 G 0,5 | 17,5 | 533,2 |
| 42 G 0,5 | 18,3 | 578,7 |
| 45 G 0,5 | 18,8 | 610,9 |
| 50 G 0,5 | 19,3 | 649,7 |
| 52 G 0,5 | 19,3 | 656,4 |
| 54 G 0,5 | 19,8 | 686,9 |
| 56 G 0,5 | 19,8 | 693,7 |
| 2 x 0,75 | 6,9 | 74,6 |
| 3 G 0,75 | 7,2 | 84,9 |
| 4 G 0,75 | 7,7 | 99,3 |
| 5 G 0,75 | 8,3 | 116,2 |
| 6 G 0,75 | 9,1 | 140 |
| 7 G 0,75 | 9,1 | 145,1 |
| 8 G 0,75 | 10,2 | 177,9 |
| 9 G 0,75 | 11,0 | 204,8 |
| 10 G 0,75 | 11,4 | 223,2 |
| 12 G 0,75 | 11,8 | 242,1 |
| 14 G 0,75 | 12,3 | 269,4 |
| 16 G 0,75 | 12,8 | 298,5 |
| 18 G 0,75 | 13,6 | 334,7 |
| 19 G 0,75 | 13,6 | 339,8 |
| 20 G 0,75 | 14,2 | 365,8 |
| 24 G 0,75 | 15,8 | 447,3 |
| 25 G 0,75 | 16,3 | 472,7 |
| 27 G 0,75 | 16,3 | 482,8 |
| 30 G 0,75 | 16,9 | 522,4 |
| 32 G 0,75 | 17,4 | 555,9 |
| 34 G 0,75 | 18,0 | 592,2 |
| 36 G 0,75 | 18,0 | 602,4 |
| 37 G 0,75 | 18,0 | 607,4 |
| 40 G 0,75 | 19,3 | 686 |
| 2 x 1 | 7,2 | 84 |
| 3 G 1 | 7,6 | 96,8 |
| 4 G 1 | 8,1 | 115 |
| 5 G 1 | 8,9 | 140,8 |
| 6 G 1 | 9,6 | 162,3 |
| 7 G 1 | 9,6 | 169 |
| 8 G 1 | 11,0 | 213,6 |
| 9 G 1 | 11,7 | 239 |
| 10 G 1 | 12,2 | 262,6 |
| 12 G 1 | 12,5 | 286,3 |
| 14 G 1 | 13,1 | 318,8 |
| 16 G 1 | 13,9 | 359,8 |
| 18 G 1 | 14,5 | 398,1 |
| 19 G 1 | 14,5 | 404,8 |
| 20 G 1 | 15,2 | 436 |
| 24 G 1 | 17,1 | 542,7 |
| 25 G 1 | 17,4 | 562,9 |
| 27 G 1 | 17,4 | 576,4 |
| 30 G 1 | 18,0 | 621,4 |
| 32 G 1 | 18,8 | 675,8 |
| 34 G 1 | 19,5 | 720,2 |
| 36 G 1 | 19,5 | 733,7 |
| 37 G 1 | 19,5 | 740,5 |
| 2 x 1,5 | 8,1 | 107,8 |
| 3 G 1,5 | 8,8 | 131,9 |
| 4 G 1,5 | 9,4 | 156,7 |
| 5 G 1,5 | 10,2 | 186,5 |
| 6 G 1,5 | 11,2 | 222,6 |
| 7 G 1,5 | 11,2 | 232,2 |
| 8 G 1,5 | 12,6 | 285,5 |
| 9 G 1,5 | 13,6 | 330,1 |
| 10 G 1,5 | 14,2 | 359,4 |
| 12 G 1,5 | 14,6 | 395,1 |
| 14 G 1,5 | 15,3 | 439,8 |
| 16 G 1,5 | 16,3 | 496,5 |
| 18 G 1,5 | 17,1 | 551,3 |
| 19 G 1,5 | 17,1 | 560,9 |
| 20 G 1,5 | 17,9 | 604,3 |
| 24 G 1,5 | 20,1 | 753,3 |
| 2 x 2,5 | 9,3 | 146,3 |
| 3 G 2,5 | 9,7 | 173,5 |
| 4 G 2,5 | 10,5 | 212 |
| 5 G 2,5 | 11,6 | 257,8 |
| 6 G 2,5 | 12,6 | 302,6 |
| 7 G 2,5 | 12,6 | 318,6 |
| 8 G 2,5 | 14,5 | 402,1 |
| 9 G 2,5 | 15,4 | 453,7 |
| 10 G 2,5 | 16,3 | 502,6 |
| 12 G 2,5 | 16,7 | 557,3 |
| 14 G 2,5 | 17,5 | 622,5 |
| 16 G 2,5 | 18,6 | 706,6 |
| 18 G 2,5 | 19,5 | 781,4 |
| 19 G 2,5 | 19,5 | 797,4 |
| 2 x 4 | 10,4 | 193,1 |
| 3 G 4 | 11,1 | 241,1 |
| 4 G 4 | 12,1 | 295,8 |
| 5 G 4 | 13,3 | 362 |
| 6 G 4 | 14,4 | 427,2 |
| 7 G 4 | 14,4 | 453 |
| 8 G 4 | 16,6 | 566,9 |
| 9 G 4 | 17,7 | 639,9 |
| 10 G 4 | 18,6 | 710,2 |
| 12 G 4 | 19,2 | 788,5 |
| 2 x 6 | 12,1 | 270,7 |
| 3 G 6 | 12,8 | 331,3 |
| 4 G 6 | 14,1 | 414,7 |
| 5 G 6 | 15,4 | 501,8 |
| 6 G 6 | 16,9 | 603,4 |
| 2 x 10 | 14,3 | 399,5 |
| 3 G 10 | 15,1 | 496,1 |
| 4 G 10 | 16,7 | 628,6 |
| 5 G 10 | 18,5 | 773,3 |
| 2 x 16 | 17,0 | 587 |
| 3 G 16 | 18,3 | 749,3 |
| 4 G 16 | 20,0 | 938,9 |
