LIH(St)CH-TP Signal Control Cable

Do you have a question about

LIH(St)CH-TP Signal Control Cable ?

CALL US NOW

+90 262 655 0 276
I WANT TO GET INFORMATION
LIH(St)CH-TP Signal Control Cable Data Sheet PDF Download

Description

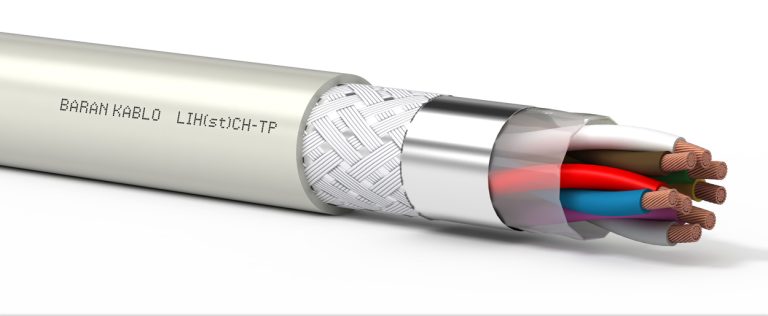

Baran Kablo’s LIH(St)CH-TP Halogen-Free and Double Shielded Matched Data Cable is specifically designed for indoor applications that demand high safety and performance. This cable is ideal for signal transmission in electronic control systems, communication technologies, and switchgear panels, offering excellent Electromagnetic Compatibility (EMC).

The LIH(St)CH-TP model is halogen-free, which prevents the spread of flames during a fire while producing minimal smoke. The HFFR (Flame Retardant and Self-Extinguishing) compound ensures that the cable meets high safety standards even in emergency situations. Its double shielding protects against electromagnetic interference, preserving data integrity and minimizing signal loss.

The matched design ensures that each signal pair is individually isolated, reducing the risk of crosstalk and resulting in more stable and reliable data transmission. LIH(St)CH-TP is especially preferred in environments with sensitive electronic devices and where high safety is paramount.

Baran Kablo’s product is perfect for maintaining a robust and secure technological infrastructure, delivering high performance in complex and critical systems.



Cable Structure

ConductorFlexible Stranded Annealed Copper (IEC/EN 60228, VDE 0295, Class 5)
Insulationhalogen-free polymer compound (EN 50290-2-26, VDE 0207-363-7)
Core Stranding Cores twisted to pairs, pairs is stranded in layers
ColoursOuter Sheath: Grey RAL7001 and other colours on request
Core Colours: Coloured acc. to DIN 47100
Outer Sheathhalogen-free polymer compound (EN 50290-2-27, VDE 0207-363-7)
WrappingPETP foil
Screen1st Al-PET Foil
2nd Tinned Copper Wire Braid



Technical Specifications

Min. Bending RadiusFixed: 5 x Cable Diameter, Flexible: 10 x Cable Diameter
Operating Voltage0.50 mm²..1.50 mm² 300 V / 500 V; 2.50 mm²…... 450 V / 750
Test Voltage 2500 V
Temperature Range Fixed: -30 °C ........+70 °C, Flexible: -5 °C ........+70 °C
Flame Retardancy IEC 60332-1-2, VDE 0482-332-1-2
Smoke Density IEC 61034-1&2
Halogen Free DIN VDE 0482-754-1 / DIN EN 60754-1 / IEC 60754-1

Technical Tables

Damar Sayısı X Kesit
(nxmm²) (Number of Veins X Section)(nxmm²)		Dış Çap
mm (Outer Diameter
mm)		Kablo Ağırlığı
≈ Kg/Km (Cable Weight ≈ Kg/Km)
1 x 2 x 0,143,818
2 x 2 x 0,145,329
3 x 2 x 0,145,533
4 x 2 x 0,146,038
5 x 2 x 0,146,646
6 x 2 x 0,147,153
7 x 2 x 0,147,155
8 x 2 x 0,148,266
9 x 2 x 0,148,773
10 x 2 x 0,149,077
12 x 2 x 0,149,283
14 x 2 x 0,149,994
16 x 2 x 0,1410,3104
18 x 2 x 0,1411,0117
19 x 2 x 0,1411,0120
20 x 2 x 0,1411,5125
24 x 2 x 0,1412,9150
25 x 2 x 0,1413,1155
27 x 2 x 0,1413,1160
30 x 2 x 0,1413,5170
32 x 2 x 0,1414,2184
34 x 2 x 0,1414,7195
36 x 2 x 0,1414,7199
37 x 2 x 0,1414,7202
40 x 2 x 0,1415,8223
42 x 2 x 0,1416,5234
45 x 2 x 0,1417,0254
50 x 2 x 0,1417,4269
52 x 2 x 0,1417,4274
54 x 2 x 0,1417,9281
56 x 2 x 0,1417,9286
1 x 2 x 0,224,220
2 x 2 x 0,225,835
3 x 2 x 0,226,139
4 x 2 x 0,226,850
5 x 2 x 0,227,456
6 x 2 x 0,228,266
7 x 2 x 0,228,269
8 x 2 x 0,229,281
9 x 2 x 0,2210,092
10 x 2 x 0,2210,399
12 x 2 x 0,2210,6105
14 x 2 x 0,2211,3122
16 x 2 x 0,2211,8132
18 x 2 x 0,2212,6150
19 x 2 x 0,2212,6153
20 x 2 x 0,2213,2162
24 x 2 x 0,2214,7193
25 x 2 x 0,2215,0198
27 x 2 x 0,2215,0205
30 x 2 x 0,2215,7226
32 x 2 x 0,2216,3237
34 x 2 x 0,2217,0259
36 x 2 x 0,2217,0265
37 x 2 x 0,2217,0268
40 x 2 x 0,2218,3295
42 x 2 x 0,2219,1312
45 x 2 x 0,2219,4325
1 x 2 x 0,254,321
2 x 2 x 0,256,137
3 x 2 x 0,256,442
4 x 2 x 0,257,154
5 x 2 x 0,257,760
6 x 2 x 0,258,572
7 x 2 x 0,258,575
8 x 2 x 0,259,892
9 x 2 x 0,2510,4101
10 x 2 x 0,2510,7107
12 x 2 x 0,2511,2122
14 x 2 x 0,2511,8133
16 x 2 x 0,2512,5152
18 x 2 x 0,2513,1165
19 x 2 x 0,2513,1169
20 x 2 x 0,2514,0184
24 x 2 x 0,2515,6219
25 x 2 x 0,2515,9225
27 x 2 x 0,2515,9233
30 x 2 x 0,2516,4248
32 x 2 x 0,2517,2272
34 x 2 x 0,2517,8283
36 x 2 x 0,2517,8291
37 x 2 x 0,2517,8294
40 x 2 x 0,2519,1328
1 x 2 x 0,344,523
2 x 2 x 0,346,440
3 x 2 x 0,346,952
4 x 2 x 0,347,559
5 x 2 x 0,348,372
6 x 2 x 0,349,082
7 x 2 x 0,349,086
8 x 2 x 0,3410,4104
9 x 2 x 0,3411,2119
10 x 2 x 0,3411,5126
12 x 2 x 0,3411,9137
14 x 2 x 0,3412,7158
16 x 2 x 0,3413,3173
18 x 2 x 0,3414,1194
19 x 2 x 0,3414,1198
20 x 2 x 0,3414,8210
24 x 2 x 0,3416,5248
25 x 2 x 0,3417,1267
27 x 2 x 0,3417,1276
30 x 2 x 0,3417,6294
32 x 2 x 0,3418,4318
34 x 2 x 0,3419,1336
36 x 2 x 0,3419,1345
37 x 2 x 0,3419,1349
1 x 2 x 0,55,432
2 x 2 x 0,57,756
3 x 2 x 0,58,470
4 x 2 x 0,59,183
5 x 2 x 0,510,199
6 x 2 x 0,511,1119
7 x 2 x 0,511,1126
8 x 2 x 0,512,8151
9 x 2 x 0,513,9172
10 x 2 x 0,514,2182
12 x 2 x 0,514,7201
14 x 2 x 0,515,6228
16 x 2 x 0,516,4249
18 x 2 x 0,517,4281
19 x 2 x 0,517,4288
20 x 2 x 0,518,4311
19 x 2 x 0,517,4288
20 x 2 x 0,518,4311
1 x 2 x 0,755,838
2 x 2 x 0,758,669
3 x 2 x 0,759,183
4 x 2 x 0,7510,1102
5 x 2 x 0,7511,1125
6 x 2 x 0,7512,1143
7 x 2 x 0,7512,1152
8 x 2 x 0,7514,2188
9 x 2 x 0,7515,3215
10 x 2 x 0,7515,7228
12 x 2 x 0,7516,2251
14 x 2 x 0,7517,2288
16 x 2 x 0,7518,3323
18 x 2 x 0,7519,2354
19 x 2 x 0,7519,2363
1 x 2 x 16,142
2 x 2 x 19,179
3 x 2 x 19,899
4 x 2 x 110,7119
5 x 2 x 111,9143
6 x 2 x 113,1171
7 x 2 x 113,1183
8 x 2 x 115,3226
9 x 2 x 116,4246
10 x 2 x 117,0274
12 x 2 x 117,6301
14 x 2 x 118,6345
16 x 2 x 119,8388
1 x 2 x 1,57,257
2 x 2 x 1,511,0111
3 x 2 x 1,511,6133
4 x 2 x 1,512,9165
5 x 2 x 1,514,2199
6 x 2 x 1,515,6236
7 x 2 x 1,515,6253
8 x 2 x 1,518,3309
9 x 2 x 1,519,8352
1 x 2 x 2,58,375
2 x 2 x 2,512,6147
3 x 2 x 2,513,3181
4 x 2 x 2,514,8226
5 x 2 x 2,516,3271
6 x 2 x 2,518,0321
7 x 2 x 2,518,0348
