LIHCH Signal Control Cable

Do you have a question about

LIHCH Signal Control Cable ?

CALL US NOW

+90 262 655 0 276
I WANT TO GET INFORMATION
LIHCH Signal Control Cable Data Sheet PDF Download

Description

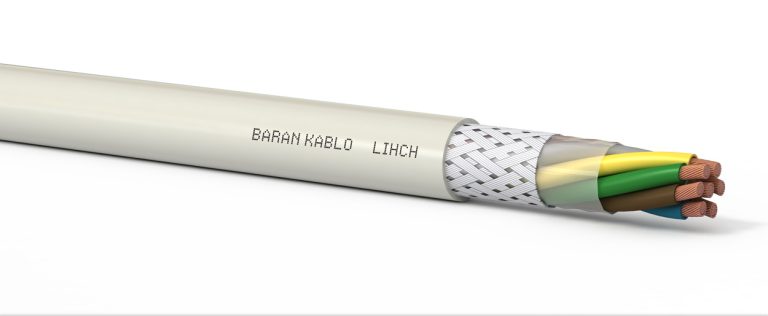

Baran Kablo’s LIHCH Halogen-Free and Shielded Data Cable is ideal for use in electronic control systems, communication technologies, and machine industry panels. Designed specifically for indoor applications, this cable is equipped with high Electromagnetic Compatibility (EMC) features, providing excellent protection against electromagnetic interference.

The LIHCH model is reinforced with an HFFR (Flame Retardant and Self-Extinguishing) compound and features a halogen-free design. This prevents the spread of flames and minimizes smoke production in the event of a fire, thereby enhancing safety during emergencies. Its shielded construction ensures superior protection against electromagnetic disturbances, preserving data integrity.

This cable is particularly suitable for applications with high safety requirements, such as environments with dense electrical equipment or industrial facilities demanding elevated security. LIHCH provides a reliable and durable solution for sensitive electronic applications, meeting the high performance and safety expectations of complex systems in technology-driven indoor infrastructures.



Cable Structure

ConductorFlexible Stranded Annealed Copper (IEC/EN 60228, VDE 0295, Class 5)
InsulationHFFR compound (EN 50290-2-26, VDE 0207-363-7)
Core Stranding In layers
ColoursOuter Sheath: Grey RAL7001 and other colours on request
Core Colours: Coloured acc. to DIN 47100
Outer SheathHFFR compound (EN 50290-2-27, VDE 0207-363-7)
WrappingPETP foil
ScreenTinned Copper Wire Braid



Technical Specifications

Min. Bending RadiusFixed: 5 x Cable Diameter, Flexible: 10 x Cable Diameter
Operating Voltage 0.50 mm²..1.50 mm² 300 V / 500 V; 2.50 mm²…... 450 V / 750 V
Test Voltage 2500 V
Temperature RangeFixed: -30 °C ........+70 °C, Flexible: -5 °C ........+70 °C
Flame RetardancyIEC 60332-1-2, VDE 0482-332-1-2
Smoke Density IEC 61034-1&2
Halogen FreeDIN VDE 0482-754-1 / DIN EN 60754-1 / IEC 60754-1



Technical Tables

Damar Sayısı X Kesit
(nxmm²) (Number of Veins X Section)(nxmm²)		Dış Çap
mm (Outer Diameter
mm)		Kablo Ağırlığı
≈ Kg/Km (Cable Weight ≈ Kg/Km)
2 x 0,143,216
3 x 0,143,421
4 x 0,143,624
5 x 0,143,927
6 x 0,144,230
7 x 0,144,233
8 x 0,144,941
9 x 0,145,344
10 x 0,145,447
12 x 0,145,654
14 x 0,145,860
16 x 0,146,368
18 x 0,146,674
19 x 0,146,677
20 x 0,146,980
24 x 0,147,897
25 x 0,148,0102
27 x 0,148,0107
30 x 0,148,2115
32 x 0,148,5121
34 x 0,149,0131
36 x 0,149,0136
37 x 0,149,0138
40 x 0,149,5150
42 x 0,1410,0158
45 x 0,1410,1166
50 x 0,1410,6184
52 x 0,1410,6188
54 x 0,1410,9194
56 x 0,1410,9199
2 x 0,223,521
3 x 0,223,724
4 x 0,224,029
5 x 0,224,435
6 x 0,224,942
7 x 0,224,945
8 x 0,225,552
9 x 0,226,159
10 x 0,226,363
12 x 0,226,570
14 x 0,226,878
16 x 0,227,188
18 x 0,227,6100
19 x 0,227,6103
20 x 0,228,0108
24 x 0,229,0130
25 x 0,229,2134
27 x 0,229,2140
30 x 0,229,5153
32 x 0,229,8161
34 x 0,2210,2170
36 x 0,2210,2176
37 x 0,2210,2180
40 x 0,2211,0198
42 x 0,2211,5210
45 x 0,2211,9226
50 x 0,2212,2244
52 x 0,2212,2250
54 x 0,2212,6258
56 x 0,2212,6264
2 x 0,253,722
3 x 0,253,927
4 x 0,254,231
5 x 0,254,740
6 x 0,255,146
7 x 0,255,149
8 x 0,255,857
9 x 0,256,466
10 x 0,256,570
12 x 0,256,778
14 x 0,257,089
16 x 0,257,6102
18 x 0,258,0112
19 x 0,258,0116
20 x 0,258,3121
24 x 0,259,4147
25 x 0,259,6152
27 x 0,259,6159
30 x 0,259,9172
32 x 0,2510,5187
34 x 0,2510,8197
36 x 0,2510,8204
37 x 0,2510,8208
40 x 0,2511,5225
42 x 0,2512,3242
45 x 0,2512,5254
50 x 0,2512,8276
52 x 0,2512,8283
54 x 0,2513,3300
56 x 0,2513,3307
2 x 0,343,925
3 x 0,344,130
4 x 0,344,640
5 x 0,345,046
6 x 0,345,452
7 x 0,345,456
8 x 0,346,369
9 x 0,346,775
10 x 0,346,981
12 x 0,347,193
14 x 0,347,7107
16 x 0,348,1119
18 x 0,348,5130
19 x 0,348,5135
20 x 0,349,1146
24 x 0,3410,0172
25 x 0,3410,2178
27 x 0,3410,2187
30 x 0,3410,7208
32 x 0,3411,1220
34 x 0,3411,5233
36 x 0,3411,5242
37 x 0,3411,5247
40 x 0,3412,4271
42 x 0,3413,0286
45 x 0,3413,5308
50 x 0,3413,8333
52 x 0,3413,8342
54 x 0,3414,2354
56 x 0,3414,2363
2 x 0,54,836
3 x 0,55,044
4 x 0,55,552
5 x 0,56,166
6 x 0,56,676
7 x 0,56,682
8 x 0,57,899
9 x 0,58,3110
10 x 0,58,5118
12 x 0,59,0138
14 x 0,59,4156
16 x 0,59,9173
18 x 0,510,6196
19 x 0,510,6203
20 x 0,511,1213
24 x 0,512,5255
25 x 0,512,7266
27 x 0,512,7280
30 x 0,513,4310
32 x 0,513,9328
34 x 0,514,4345
36 x 0,514,4359
37 x 0,514,4366
40 x 0,515,5403
42 x 0,516,5433
45 x 0,516,7457
50 x 0,517,1494
52 x 0,517,1508
54 x 0,517,8535
56 x 0,517,8549
2 x 0,755,243
3 x 0,755,453
4 x 0,756,170
5 x 0,756,782
6 x 0,757,296
7 x 0,757,2105
8 x 0,758,5125
9 x 0,759,3142
10 x 0,759,5155
12 x 0,759,8176
14 x 0,7510,5203
16 x 0,7511,0226
18 x 0,7511,6250
19 x 0,7511,6260
20 x 0,7512,4278
24 x 0,7513,9334
25 x 0,7514,2346
27 x 0,7514,2365
30 x 0,7514,9406
32 x 0,7515,4429
34 x 0,7516,0454
36 x 0,7516,0474
37 x 0,7516,0483
40 x 0,7517,2529
2 x 15,549
3 x 15,864
4 x 16,582
5 x 17,198
6 x 17,9118
7 x 17,9130
8 x 19,3153
9 x 19,9170
10 x 110,2185
12 x 110,7216
14 x 111,2243
16 x 112,0279
18 x 112,6307
19 x 112,6319
20 x 113,5343
24 x 115,1411
25 x 115,4425
27 x 115,4449
30 x 115,9492
32 x 116,7530
34 x 117,3558
36 x 117,3582
37 x 117,3594
2 x 1,56,668
3 x 1,57,088
4 x 1,57,8113
5 x 1,58,5136
6 x 1,59,5164
7 x 1,59,5181
8 x 1,511,0212
9 x 1,512,0243
10 x 1,512,3262
12 x 1,512,7301
14 x 1,513,6347
16 x 1,514,3387
18 x 1,515,2436
19 x 1,515,2453
20 x 1,516,0479
24 x 1,518,1580
2 x 2,57,697
3 x 2,58,1127
4 x 2,59,0162
5 x 2,59,9196
6 x 2,511,0233
7 x 2,511,0260
8 x 2,512,8307
9 x 2,513,9346
10 x 2,514,3376
12 x 2,514,9442
14 x 2,515,7503
16 x 2,516,7573
18 x 2,517,8641
19 x 2,517,8668
2 x 48,7131
3 x 49,4181
4 x 410,5233
