Description

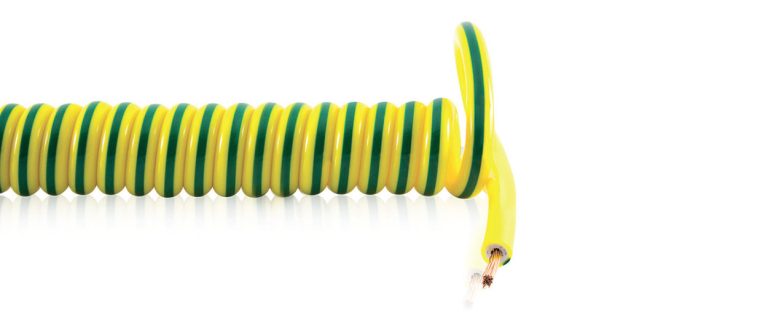

LIF11Y – LIF11Y11Y Single Core PUR/PUR Spiral Cable is a specially designed cable for various industrial and commercial applications that require flexibility, durability, and high performance. This cable is ideal for use in moving machinery, robotic systems, and automation applications.
LIF11Y – LIF11Y11Y Single Core PUR/PUR Spiral Cable offers long-lasting performance with high-quality materials and superior design, making it a reliable choice for various industrial applications.
Cable Structure
| Conductor | Flexible Stranded Annealed Copper (IEC/EN 60228, VDE 0295) |
| Insulation | Special PUR Compound |
| Core Stranding | In layers |
| Outer Sheath Color | Yellow-Green |
| Basic Colors | Transparent or white |
| Outer Sheath | PUR (TMPU EN 50363-10-2) |
Technical Specifications
| Min. Bending Radius | Fixed: 5 x Cable Diameter, Flexible: 10 x Cable Diameter |
| Operating Voltage | 300 V / 500 V |
| Test Voltage | 3000 V |
| Temperature Range | Fixed: -50 °C ........+90 °C, Flexible: -40 °C ........+80 °C |
| Flame Retardancy | IEC/EN 60332-1-2 |
| Oil Resistance | EN 50363-10-2 |
Technical Tables
| Cable MM2 | Cable Diameter | Spiral Diameter +/-10% |
|---|---|---|
| 1x0,5 | 2.1 | 8.77 |
| 1x0,75 | 2.3 | 9.2 |
| 1x1 | 2.4 | 9.42 |
| 1x1,5 | 2.9 | 10.49 |
| 1x1,5 | 5.3 | 17.76 |
| 1x2,5 | 5.9 | 19.05 |
| 1x4 | 6.8 | 23.11 |
| 1x6 | 7.4 | 24.4 |
| 1x10 | 8.9 | 29.75 |
| 1x16 | 9.9 | 34.03 |
| 1x35 | 13.1 | 46.22 |
