Description

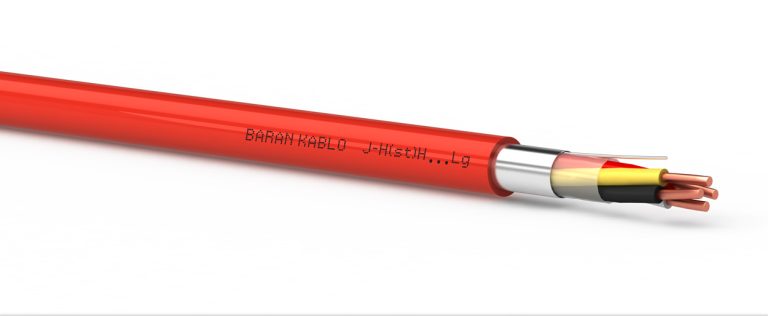

Baran Kablo’s J – H(St)H…Lg cable is a wiring cable specifically developed for fire alarm and telecommunication systems. This product is designed for indoor applications in dry and humid rooms, as well as for control and fire alarm installations and security systems, supporting both analog and digital signal transmission.
One of the cable’s standout features is its use of halogen-free and flame-retardant compounds. These characteristics prevent the spread of flames and produce very little smoke during a fire, thereby preserving visibility during emergencies and enhancing safety. The J – H(St)H…Lg cable is ideal for environments where fire safety and communication requirements are extremely high, as it ensures high signal integrity and transmission reliability.
This cable also offers excellent protection against electromagnetic interference, guaranteeing that fire alarm and security systems operate continuously and reliably. Manufactured with high-quality materials and designed to withstand harsh indoor conditions, the J – H(St)H…Lg cable is a dependable choice for supporting the effective operation of telecommunication and fire alarm systems.
Cable Structure
| Conductor | Solid Annealed Copper (IEC/EN 60228, VDE 0295, Class 1) |
| Insulation | HFFR (EN 50290-2-26) |
| Core Stranding | 2 cores twisted to pairs and 4 pairs twisted to a unit |
| Colours | Outer Sheath: Red and other colours on request Core Colours: Coloured acc. to VDE 0815 |
| Outer Sheath | HFFR (EN 50290-2-27) |
| Screen | Al-PET Foil with Solid Tinned Copper Drain Wire |
| Wrapping | PETP foil |
Technical Specifications
| Min. Bending Radius | Fixed: 8 x Cable Diameter |
| Operating Voltage | 300 V |
| Test Voltage | 800 V |
| Temperature Range | Fixed: -30 °C ........+70 °C |
| Flame Retardancy | IEC/EN 60332-1 |
| Smoke Density | IEC 61034-1&2 |
| Halogen Free | DIN VDE 0482-754-1 / DIN EN 60754-1 / IEC 60754-1” |
Technical Tables
| J-H(st)H | ||
|---|---|---|
| ÇAP(DIAMETER) | AĞIRLIK(WEIGHT) | |
| 1x2x0,6 | 4.4 | 32 |
| 2x2x0,6 | 4.9 | 44 |
| 3x2x0,6 | 6.3 | 62 |
| 4x2x0,6 | 6.8 | 77 |
| 5x2x0,6 | 7.5 | 98 |
| 6x2x0,6 | 8.1 | 115 |
| 10x2x0,6 | 9.9 | 174 |
| 16x2x0,6 | 11.7 | 247 |
| 20x2x0,6 | 13 | 320 |
| 24x2x0,6 | 14 | 360 |
| 30x2x0,6 | 15.5 | 440 |
| 1x2x0,8 | 5.2 | 42 |
| 2x2x0,8 | 5.9 | 55 |
| 3x2x0,8 | 7.9 | 82 |
| 4x2x0,8 | 8.6 | 102 |
| 5x2x0,8 | 9.3 | 124 |
| 6x2x0,8 | 10.3 | 155 |
| 10x2x0,8 | 12.6 | 227 |
| 16x2x0,8 | 15.1 | 327 |
| 20x2x0,8 | 16.7 | 412 |
| 24x2x0,8 | 18.2 | 473 |
| 30x2x0,8 | 19.9 | 560 |
