Description
Baran Kablo’s HSLCH – HMH – C / HFFR Control Cable is a halogen-free, flexible cable that delivers outstanding performance and safety for both indoor and outdoor applications. Designed for use in electrical equipment, electronic control systems, and automation technologies—as well as in demanding sectors such as machinery and the chemical industry—this cable performs reliably in wet, dry, and humid environments.
The HFFR (Flame Retardant and Self-Extinguishing) compound makes it ideal for areas with very high fire safety requirements. The cable is equipped with tinned copper wire shielding that offers excellent protection against high-frequency interference, ensuring superior electromagnetic compatibility. Additionally, thanks to UV-protected compounds, it maintains its durability even in outdoor applications exposed to direct sunlight.
Baran Kablo’s product provides an ideal solution for applications that require high safety standards and are exposed to challenging environmental conditions, offering long-lasting performance and sustainable safety.

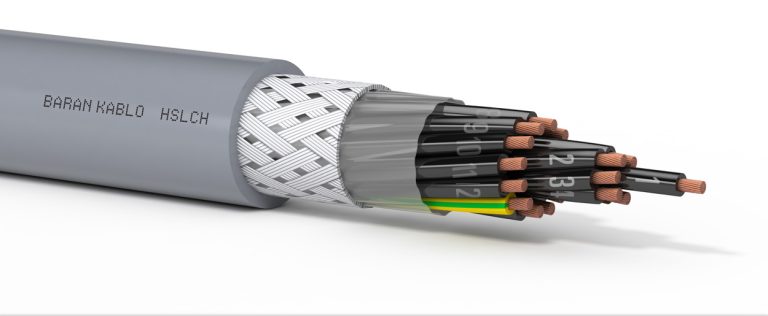

Cable Structure
| Conductor | Flexible Stranded Annealed Copper (IEC/EN 60228, VDE 0295, Class 5) |
| Yalıtkan | HFFR compound (EN 50290-2-26, VDE 0207-363-7) |
| Core Stranding | In layers |
| Colours | Outer Sheath: Grey RAL7001 and other colours on request |
| Core Colours | HSLCH-JZ type; White numbered black cores with yellow-green earth conductor. HSLCH-OZ type; White numbered black cores without yellow-green earth conductor. |
| Outer Sheath | HFFR compound (DIN EN 50363-8, VDE 0207-363-8) |
| Wrapping | PETP foil |
| Screen | Tinned Copper Wire Braid |
Technical Specifications
| Min. Bending Radius | Fixed: 8 x Cable Diameter, Flexible: 15 x Cable Diameter |
| Operating Voltage | 300 V / 500 V |
| Test Voltage | 2500 V |
| Temperature Range | Fixed: -30 °C ........+70 °C, Flexible: -5 °C ........+70 °C |
| Flame Retardancy | DIN VDE 0482-332-1-2 / DIN EN 60332-1-2 / IEC 60332-1-2 |
| Smoke Density | IEC 61034-1&2 |
| Halogen Free | DIN VDE 0482-754-1&2 / DIN EN 60754-1&2 / IEC 60754-1&2 |
Technical Tables
| Damar Sayısı X Kesit (nxmm²) (Number of Veins X Section)(nxmm²) | Dış Çap mm (Outer Diameter mm) | Kablo Ağırlığı ≈ Kg/Km (Cable Weight ≈ Kg/Km) |
|---|---|---|
| 2 x 0,5 | 5,3 | 38 |
| 3 G 0,5 | 5,6 | 46 |
| 4 G 0,5 | 6,2 | 60 |
| 5 G 0,5 | 6,7 | 69 |
| 6 G 0,5 | 7,2 | 80 |
| 7 G 0,5 | 7,2 | 87 |
| 8 G 0,5 | 8,1 | 99 |
| 9 G 0,5 | 8,8 | 115 |
| 10 G 0,5 | 9,3 | 127 |
| 12 G 0,5 | 9,5 | 143 |
| 14 G 0,5 | 10,0 | 159 |
| 16 G 0,5 | 10,5 | 178 |
| 18 G 0,5 | 11,2 | 200 |
| 19 G 0,5 | 11,2 | 207 |
| 20 G 0,5 | 11,7 | 217 |
| 24 G 0,5 | 13,0 | 262 |
| 25 G 0,5 | 13,3 | 271 |
| 27 G 0,5 | 13,3 | 285 |
| 30 G 0,5 | 13,9 | 315 |
| 32 G 0,5 | 14,4 | 333 |
| 34 G 0,5 | 14,9 | 352 |
| 36 G 0,5 | 14,9 | 366 |
| 37 G 0,5 | 14,9 | 373 |
| 40 G 0,5 | 15,8 | 401 |
| 42 G 0,5 | 16,8 | 431 |
| 45 G 0,5 | 17,1 | 454 |
| 50 G 0,5 | 17,5 | 491 |
| 52 G 0,5 | 17,5 | 505 |
| 54 G 0,5 | 18,0 | 523 |
| 56 G 0,5 | 18,0 | 537 |
| 2 x 0,75 | 5,7 | 47 |
| 3 G 0,75 | 6,2 | 60 |
| 4 G 0,75 | 6,7 | 72 |
| 5 G 0,75 | 7,2 | 86 |
| 6 G 0,75 | 7,8 | 98 |
| 7 G 0,75 | 7,8 | 108 |
| 8 G 0,75 | 9,0 | 129 |
| 9 G 0,75 | 9,6 | 142 |
| 10 G 0,75 | 10,1 | 158 |
| 12 G 0,75 | 10,4 | 180 |
| 14 G 0,75 | 10,8 | 203 |
| 16 G 0,75 | 11,6 | 231 |
| 18 G 0,75 | 12,1 | 255 |
| 19 G 0,75 | 12,1 | 264 |
| 20 G 0,75 | 12,7 | 277 |
| 24 G 0,75 | 14,4 | 339 |
| 25 G 0,75 | 14,7 | 353 |
| 27 G 0,75 | 14,7 | 372 |
| 30 G 0,75 | 15,2 | 404 |
| 32 G 0,75 | 15,7 | 427 |
| 34 G 0,75 | 16,5 | 459 |
| 36 G 0,75 | 16,5 | 477 |
| 37 G 0,75 | 16,5 | 487 |
| 40 G 0,75 | 17,5 | 526 |
| 2 x 1 | 6,2 | 56 |
| 3 G 1 | 6,6 | 70 |
| 4 G 1 | 7,1 | 86 |
| 5 G 1 | 7,7 | 101 |
| 6 G 1 | 8,5 | 121 |
| 7 G 1 | 8,5 | 133 |
| 8 G 1 | 9,6 | 152 |
| 9 G 1 | 10,2 | 170 |
| 10 G 1 | 10,7 | 189 |
| 12 G 1 | 11,3 | 221 |
| 14 G 1 | 11,8 | 248 |
| 16 G 1 | 12,4 | 278 |
| 18 G 1 | 13,0 | 307 |
| 19 G 1 | 13,0 | 319 |
| 20 G 1 | 13,8 | 342 |
| 24 G 1 | 15,4 | 409 |
| 25 G 1 | 15,7 | 424 |
| 27 G 1 | 15,7 | 448 |
| 30 G 1 | 16,5 | 496 |
| 32 G 1 | 17,1 | 528 |
| 34 G 1 | 17,7 | 556 |
| 36 G 1 | 17,7 | 580 |
| 37 G 1 | 17,7 | 592 |
| 2 x 1,5 | 7,1 | 73 |
| 3 G 1,5 | 7,5 | 92 |
| 4 G 1,5 | 8,1 | 113 |
| 5 G 1,5 | 9,1 | 140 |
| 6 G 1,5 | 9,8 | 161 |
| 7 G 1,5 | 9,8 | 179 |
| 8 G 1,5 | 11,4 | 212 |
| 9 G 1,5 | 12,1 | 235 |
| 10 G 1,5 | 12,7 | 260 |
| 12 G 1,5 | 13,1 | 299 |
| 14 G 1,5 | 13,9 | 345 |
| 16 G 1,5 | 14,6 | 387 |
| 18 G 1,5 | 15,4 | 427 |
| 19 G 1,5 | 15,4 | 444 |
| 20 G 1,5 | 16,3 | 475 |
| 24 G 1,5 | 18,3 | 571 |
| 2 x 2,5 | 8,0 | 96 |
| 3 G 2,5 | 8,6 | 129 |
| 4 G 2,5 | 9,4 | 162 |
| 5 G 2,5 | 10,2 | 195 |
| 6 G 2,5 | 11,3 | 233 |
| 7 G 2,5 | 11,3 | 259 |
| 8 G 2,5 | 12,9 | 298 |
| 9 G 2,5 | 14,0 | 337 |
| 10 G 2,5 | 14,6 | 376 |
| 12 G 2,5 | 15,1 | 433 |
| 14 G 2,5 | 16,0 | 499 |
| 16 G 2,5 | 16,9 | 562 |
| 18 G 2,5 | 17,7 | 621 |
| 19 G 2,5 | 17,7 | 647 |
| 2 x 4 | 9,2 | 136 |
| 3 G 4 | 9,8 | 179 |
| 4 G 4 | 10,6 | 227 |
| 5 G 4 | 11,8 | 281 |
| 6 G 4 | 12,9 | 329 |
| 7 G 4 | 12,9 | 369 |
| 8 G 4 | 14,9 | 431 |
| 9 G 4 | 16,2 | 486 |
| 10 G 4 | 16,9 | 542 |
| 12 G 4 | 17,4 | 626 |
| 2 x 6 | 10,7 | 185 |
| 3 G 6 | 11,5 | 254 |
| 4 G 6 | 12,6 | 322 |
| 5 G 6 | 14,0 | 398 |
| 6 G 6 | 15,3 | 469 |
| 2 x 10 | 12,7 | 281 |
| 3 G 10 | 13,7 | 391 |
| 4 G 10 | 15,0 | 500 |
| 5 G 10 | 16,7 | 620 |
| 2 x 16 | 15,4 | 417 |
| 3 G 16 | 16,5 | 590 |
| 4 G 16 | 18,4 | 767 |
