Description
TVPE S PVC cable provides a reliable connection in the complex electronic systems of the defense industry. PVC insulation increases the durability of the cable, while its flexibility simplifies installation and provides superior performance in harsh conditions.

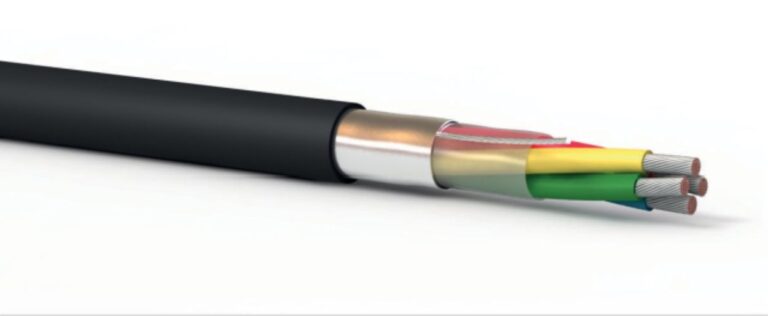

Cable Construction
| Conductor | Tinned Annealed Stranded Copper Wires |
|---|---|
| Insulation | PVC Compound |
| Core Colours | Coloured acc. to Gen. To DEF-STAN 61-12 Part 5 see Technical Information Page |
| Core Stranding | Cores Stranded in Layer with Optimum Lay Length |
| Seperator Tape | Polyster Tape |
| Screen | Aluminium Polyster Tape With Tinned Copper Drain Wire |
| Outer Sheath | PVC Compound |
| Sheath Colour | Black (RAL 9005) and other colours on request |
Technical Characteristics
| Rated Voltage | 440 V |
|---|---|
| Test Voltage | 2000 V |
| Temperature Range | -20 ila +70 °C |
| Reference Standard | Gen. to DEF-STAN 61-12 Part 5 |
| Min. Bending Radius | 12 x D mm |
| Flame Retardancy | IEC/EN 60332-1-2 |
| Cross Sectional Area mm² |
Max. Resistance of Conductor Ω/km |
|---|---|
| 0,22 | 96 |
| 0,5 | 40,1 |
| 0,75 | 26,7 |
Technical Tables
| Product Code | No. of cores x cross sectional area (n x mm²) | Insulation Diameter (± %5 mm) | Nominal Diameter (± %5 mm) | Nominal Weight (~ kg/km) |
|---|---|---|---|---|
| 7-2-2S | 2x0,22 | 1,2 | 3,5 | 16 |
| 7-2-3S | 3x0,22 | 1,2 | 3,6 | 19 |
| 7-2-4S | 4x0,22 | 1,2 | 3,9 | 23 |
| 7-2-5S | 5x0,22 | 1,2 | 4,5 | 30 |
| 7-2-6S | 6x0,22 | 1,2 | 4,8 | 35 |
| 7-2-8S | 8x0,22 | 1,2 | 5,1 | 45 |
| 7-2-12S | 12x0,22 | 1,2 | 6,2 | 56 |
| 7-2-18S | 18x0,22 | 1,2 | 7,4 | 82 |
| 7-2-25S | 25x0,22 | 1,2 | 8,9 | 109 |
| 16-2-2S | 2x0,50 | 1,85 | 5,5 | 40 |
| 16-2-4S | 4x0,50 | 1,85 | 6,7 | 65 |
| 16-2-6S | 6x0,50 | 1,85 | 7,8 | 92 |
| 16-2-8S | 8x0,50 | 1,85 | 8,3 | 118 |
| 16-2-12S | 12x0,50 | 1,85 | 9,9 | 144 |
| 16-2-18S | 18x0,50 | 1,85 | 11,5 | 203 |
| 16-2-2S | 2x0,75 | 2,05 | 6,3 | 52 |
| 24-2-4S | 4x0,75 | 2,05 | 7,1 | 76 |
| 24-2-6S | 6x0,75 | 2,05 | 8,3 | 109 |
| 24-2-8S | 8x0,75 | 2,05 | 8,8 | 140 |
| 24-2-12S | 12x0,75 | 2,05 | 10,7 | 177 |
| 24-2-18S | 18x0,75 | 2,05 | 12,4 | 252 |
