Description

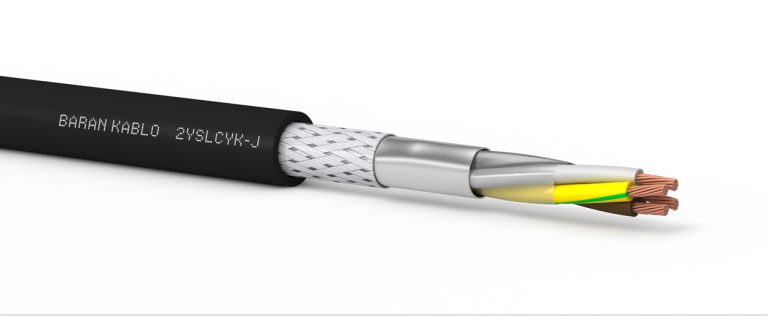

Baran Kablo’s 2YSLCYK-J Servo Motor Cable is specifically designed for outdoor applications and is an ideal double-shielded motor power cable for use with frequency converters. This cable is engineered for use in industrial plants, machine tools, automation technologies, and production facilities, and it is suitable for equipment operating under wet, dry, and humid conditions.
The 2YSLCYK-J model is equipped with foil and copper braid screens to provide excellent, interference-free data and signal transmission in measurement and control technologies. This dual shielding offers superior protection against electromagnetic interference, ensuring signal integrity and guaranteeing reliable communication. Developed specifically for outdoor conditions, this cable demonstrates exceptional durability against harsh environmental factors and delivers long-lasting performance.
Even in challenging outdoor environments, 2YSLCYK-J is a reliable option for uninterrupted operations in industrial automation systems and other critical equipment. Baran Kablo’s product offers excellent solutions for applications that require robust technical infrastructure and high performance, adapting seamlessly to the demanding conditions of the industry.
Cable Structure
| Conductor | Flexible Stranded Annealed Copper (IEC/EN 60228, VDE 0295, Class 5) |
| Insulation | PE Compound |
| Core Stranding | In layers |
| Colours | Outer Sheath: Transparent for 2YSLCY-J and Black for 2YSLCYK-J.. Other colours on request Core Colours: Colored cores according to VDE 0293 |
| Outer Sheath | Special PVC Compound |
| Double-Screen | 1st Al/PET foil 2nd tinned copper braid |
Technical Specifications
| Min. Bending Radius | Fixed: up to 12 mm: 5x and up to 20 mm : 7,5x Cable Diameter Flexible: up to 12mm Ø: 10x and up to 20mm Ø: 15x Cable Diameter |
| Operating Voltage | 600/1000 V |
| Test Voltage | 4000 V |
| Temperature Range | Fixed: -40 °C ........+80 °C, Flexible: -5°C ........+70 °C |
| Flame Retardancy | DIN VDE 0482 part 265-2-1 / EN 50265-2-1 / IEC 60332-1-2 |
Technical Tables
| Damar Sayısı X Kesit (nxmm²) (Number of Veins X Section)(nxmm²) | Dış Çap mm (Outer Diameter mm) | Kablo Ağırlığı ≈ Kg/Km (Cable Weight ≈ Kg/Km) |
|||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 4 G 1,5 | 11.4 | 230 | |||||||||
| 4 G 2,5 | 12.4 | 300 | |||||||||
| 4 G 4 | 15.6 | 485 | |||||||||
| 4 G 6 | 17 | 630 | |||||||||
| 4 G 10 | 19.6 | 860 | |||||||||
| 4 G 16 | 21.6 | 1290 | |||||||||
| Damar Sayısı X Kesit (nxmm²) (Number of Veins X Section)(nxmm²) | Dış Çap mm (Outer Diameter mm) | Kablo Ağırlığı ≈ Kg/Km (Cable Weight ≈ Kg/Km) |
|||||||||
| 3x1,5+3G0,25 | 11.4 | 140 | |||||||||
| 3x2,5+3G0,50 | 12.2 | 220 | |||||||||
| 3x4+3G0,75 | 14.4 | 323 | |||||||||
| 3x6+3G0,1 | 15.7 | 420 | |||||||||
| 3x10+3G1,50 | 18 | 615 | |||||||||
| 3x16+3G2,50 | 20.2 | 819 | |||||||||
