Description

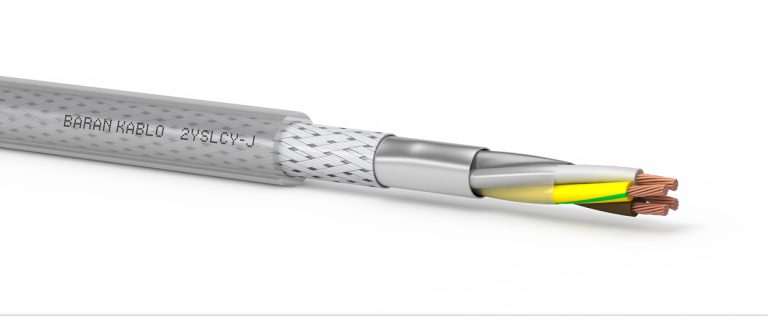

Baran Kablo’s 2YSLCY-J Servo Motor Cable is a double-shielded motor power cable specifically designed for use with frequency converters. This cable is frequently chosen for industrial plants, machine tools, automation technologies, and production facilities. Ideal for equipment operating in wet, dry, and humid environments, this cable has been developed for indoor applications.
The 2YSLCY-J model offers excellent, interference-free data and signal transmission in measurement and control technologies thanks to its foil and copper braid screens. This dual shielding prevents signal degradation caused by electromagnetic interference, ensuring reliable performance in applications that require high precision.
Manufactured to high-quality standards to meet the demands of industrial applications, this cable adapts perfectly to harsh operating conditions and provides long-lasting durability. While the 2YSLCY-J model is specifically designed for indoor use, the 2YSLCYK-J model is available for outdoor applications. Both models are part of Baran Kablo’s range of industrial cable solutions, offering ideal answers for challenging environments that require robust technical infrastructure.
Cable Structure
| Conductor | Flexible Stranded Annealed Copper (IEC/EN 60228, VDE 0295, Class 5) |
| Insulation | PE Compound |
| Core Stranding | In layers |
| Colours | Outer Sheath: Transparent for 2YSLCY-J and Black for 2YSLCYK-J.. Other colours on request Core Colours: Colored cores according to VDE 0293 |
| Outer Sheath | Special PVC Compound |
| Double-Screen | 1st Al/PET foil 2nd tinned copper braid |
Technical Specifications
| Min. Bending Radius | Fixed: up to 12 mm: 5x and up to 20 mm : 7,5x Cable Diameter Flexible: up to 12mm Ø: 10x and up to 20mm Ø: 15x Cable Diameter |
| Operating Voltage | 600/1000 V |
| Test Voltage | 4000 V |
| Temperature Range | Fixed: -40 °C ........+80 °C, Flexible: -5°C ........+70 °C |
| Flame Retardancy | DIN VDE 0482 part 265-2-1 / EN 50265-2-1 / IEC 60332-1-2 |
Technical Tables
| Damar Sayısı X Kesit (nxmm²) (Number of Veins X Section)(nxmm²) | Dış Çap mm (Outer Diameter mm) | Kablo Ağırlığı ≈ Kg/Km (Cable Weight ≈ Kg/Km) |
|||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 4 G 1,5 | 11.4 | 230 | |||||||||
| 4 G 2,5 | 12.4 | 300 | |||||||||
| 4 G 4 | 15.6 | 485 | |||||||||
| 4 G 6 | 17 | 630 | |||||||||
| 4 G 10 | 19.6 | 860 | |||||||||
| 4 G 16 | 21.6 | 1290 | |||||||||
| Damar Sayısı X Kesit (nxmm²) (Number of Veins X Section)(nxmm²) | Dış Çap mm (Outer Diameter mm) | Kablo Ağırlığı ≈ Kg/Km (Cable Weight ≈ Kg/Km) |
|||||||||
| 3x1,5+3G0,25 | 11.4 | 140 | |||||||||
| 3x2,5+3G0,50 | 12.2 | 220 | |||||||||
| 3x4+3G0,75 | 14.4 | 323 | |||||||||
| 3x6+3G0,1 | 15.7 | 420 | |||||||||
| 3x10+3G1,50 | 18 | 615 | |||||||||
| 3x16+3G2,50 | 20.2 | 819 | |||||||||
