Description

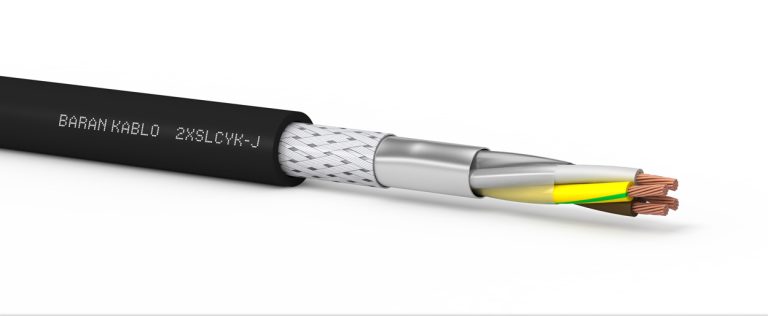

Baran Kablo’s 2XSLCY-J and 2XSLCYK-J Servo Motor Cables are double-shielded motor power cables designed especially for use with frequency converters. These cables have been developed for effective use in various environments—such as industrial plants, machine tools, automation technologies, and production facilities—in wet, dry, and humid conditions. The 2XSLCY-J model is particularly intended for indoor applications, while the 2XSLCYK-J model is aimed at outdoor use.
Both cable models are equipped with foil and copper braid shields. This dual-shielding feature guarantees excellent, interference-free data and signal transmission in measurement and control technologies. With this construction, they provide superior protection against signal distortions caused by electromagnetic interference, thereby allowing systems to operate more efficiently.
The 2XSLCY-J and 2XSLCYK-J cables deliver high performance in industrial applications by maintaining signal integrity. These cables, which enhance safety and durability, are ideally suited for harsh working conditions and serve as the perfect choice when reliable solutions are needed in complex systems. These products are part of Baran Kablo’s high-quality solutions designed for demanding industrial environments requiring robust technical infrastructure.
Cable Structure
| Conductor | Flexible Stranded Annealed Copper (IEC/EN 60228, VDE 0295, Class 5) |
| Insulation | XLPE Compound |
| Core Stranding | In layers |
| Colours | Outer Sheath: Grey or Black. Other colours on request. Core Colours: Colored cores according to VDE 0293 |
| Outer Sheath | Special PVC Compound |
| Double-Screen | 1st Al/PET foil 2nd tinned copper braid |
Technical Specifications
| Min. Bending Radius | Fixed: up to 12 mm: 5x and up to 20 mm : 7,5x Cable Diameter Flexible: up to 12mm Ø: 10x and up to 20mm Ø: 15x Cable Diameter |
| Operating Voltage | 600/1000 V |
| Test Voltage | 4000 V |
| Temperature Range | Fixed: -40 °C ........+80 °C, Flexible: -5°C ........+70 °C |
| Flame Retardancy | DIN VDE 0482 part 265-2-1 / EN 50265-2-1 / IEC 60332-1-2 |
Technical Tables
| Damar Sayısı X Kesit (nxmm²) (Number of Veins X Section)(nxmm²) | Dış Çap mm (Outer Diameter mm) | Kablo Ağırlığı ≈ Kg/Km (Cable Weight ≈ Kg/Km) |
|||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 3x1,5+3G0,25 | 11.4 | 140 | |||||||||
| 3x2,5+3G0,50 | 12.2 | 220 | |||||||||
| 3x4+3G0,75 | 14.4 | 323 | |||||||||
| 3x6+3G0,1 | 15.7 | 420 | |||||||||
| 3x10+3G1,50 | 18.0 | 615 | |||||||||
| 3x16+3G2,50 | 20.2 | 819 | |||||||||
| 4 G 1,5 | 11.4 | 230 | |||||||||
| 4 G 2,5 | 12.4 | 300 | |||||||||
| 4 G 4 | 15.6 | 485 | |||||||||
| 4 G 6 | 17 | 630 | |||||||||
| 4 G 10 | 19.6 | 860 | |||||||||
| 4 G 16 | 21.6 | 1290 | |||||||||
