YSLY Control Cable

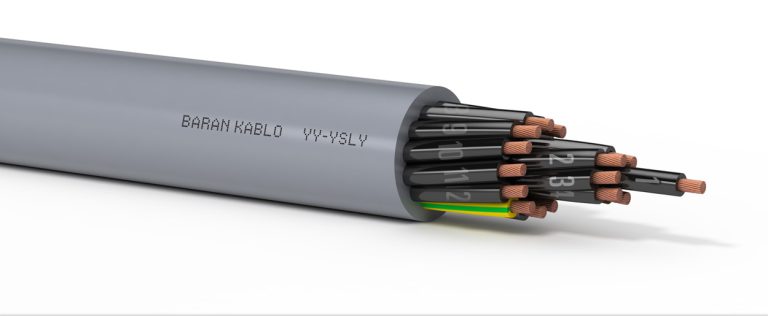

YY-YSLY PVC Control Cable: Industrial Power and Flexibility
Baran Kablo’s YY-YSLY PVC Control Cable is designed to meet your modern industrial needs. This flexible cable delivers excellent performance in various electrical equipment, electronic control systems, and automation processes. Also known as the YY Cable, this product provides a reliable solution in factory production, power plants, and similar applications.
The YSLY Cable is ideal for use in dry, humid, or wet environments and is specifically designed for industrial settings. This control cable features a robust construction that withstands moderate mechanical loads, while its flexibility ensures easy and safe installation.
Also referred to as a control cable or command control cable, the YSLY Control Cable is available in a wide range of applications. Both YY-YSLY and YSLY cables offer superior solutions for your electrical transmission requirements. Designed to perform reliably even in heavily utilized industrial environments, these products guarantee long service life and dependable performance.
Baran Kablo’s PVC control cables deliver high performance and flexibility even under the most challenging industrial conditions, ensuring excellence in your projects. For more information on the most suitable cable solutions for your needs, please contact us. If you’re looking for high quality and reliability, you’re in the right place!
Cable Structure
| Conductor | Flexible Stranded Annealed Fine Copper (IEC/EN 60228, VDE 0295, Class 5) |
| Insulation | PVC (EN 50363-3, VDE 0207-363-3) |
| Core Stranding | In layers |
| Colours | Outer Sheath: Grey RAL7001 and other colours on request |
| Core Colours | - JZ type; White numbered black cores with yellow-green earth conductor. - OZ type; White numbered black cores without yellow-green earth conductor. - JB type; Colored cores according to VDE 0293 with yellow-green earth conductor - OB type; Colored cores according to VDE 0293 without yellow-green earth conductor |
| Outer Sheath | PVC (EN 50363-4-1, VDE 0207-363-4-1) |
Technical Specifications
| Min. Bending Radius | Fixed: 4 x Cable Diameter, Flexible: 7,5 x Cable Diameter |
| Operating Voltage | 300 V / 500 V |
| Test Voltage | 3000 V |
| Temperature Range | Fixed: -30 °C ........+70 °C, Flexible: -5 °C ........+70 °C |
| Flame Retardancy | IEC/EN 60332-1-2 |
Technical Tables
| Damar Sayısı X Kesit (nxmm²) (Number of Veins X Section)(nxmm²) | Dış Çap mm (Outer Diameter mm) | Kablo Ağırlığı ≈ Kg/Km (Cable Weight ≈ Kg/Km) |
|---|---|---|
| 2 x 0,5 | 4,8 | 35 |
| 3 G 0,5 | 5,0 | 42 |
| 4 G 0,5 | 5,5 | 51 |
| 5 G 0,5 | 6,1 | 64 |
| 6 G 0,5 | 6,6 | 76 |
| 7 G 0,5 | 6,6 | 79 |
| 8 G 0,5 | 7,6 | 99 |
| 9 G 0,5 | 8,1 | 112 |
| 10 G 0,5 | 8,7 | 129 |
| 12 G 0,5 | 9,0 | 142 |
| 14 G 0,5 | 9,4 | 158 |
| 16 G 0,5 | 9,9 | 177 |
| 18 G 0,5 | 10,4 | 196 |
| 19 G 0,5 | 10,4 | 200 |
| 20 G 0,5 | 11,1 | 222 |
| 24 G 0,5 | 12,5 | 276 |
| 25 G 0,5 | 12,7 | 288 |
| 27 G 0,5 | 12,7 | 295 |
| 30 G 0,5 | 13,2 | 319 |
| 32 G 0,5 | 13,9 | 349 |
| 34 G 0,5 | 14,4 | 373 |
| 36 G 0,5 | 14,4 | 380 |
| 37 G 0,5 | 14,4 | 384 |
| 40 G 0,5 | 15,3 | 428 |
| 42 G 0,5 | 16,3 | 473 |
| 45 G 0,5 | 16,5 | 493 |
| 50 G 0,5 | 16,9 | 529 |
| 52 G 0,5 | 16,9 | 535 |
| 54 G 0,5 | 17,4 | 563 |
| 56 G 0,5 | 17,4 | 570 |
| 60 G 0,5 | 17,9 | 605 |
| 61 G 0,5 | 17,9 | 609 |
| 2 x 0,75 | 5,2 | 43 |
| 3 G 0,75 | 5,4 | 52 |
| 4 G 0,75 | 6,1 | 67 |
| 5 G 0,75 | 6,7 | 81 |
| 6 G 0,75 | 7,2 | 96 |
| 7 G 0,75 | 7,2 | 101 |
| 8 G 0,75 | 8,5 | 131 |
| 9 G 0,75 | 9,1 | 148 |
| 10 G 0,75 | 9,5 | 164 |
| 12 G 0,75 | 9,8 | 181 |
| 14 G 0,75 | 10,3 | 204 |
| 16 G 0,75 | 10,8 | 228 |
| 18 G 0,75 | 11,6 | 260 |
| 19 G 0,75 | 11,6 | 265 |
| 20 G 0,75 | 12,2 | 287 |
| 24 G 0,75 | 13,9 | 363 |
| 25 G 0,75 | 14,2 | 378 |
| 27 G 0,75 | 14,2 | 388 |
| 30 G 0,75 | 14,7 | 421 |
| 32 G 0,75 | 15,2 | 452 |
| 34 G 0,75 | 15,8 | 483 |
| 36 G 0,75 | 15,8 | 494 |
| 37 G 0,75 | 15,8 | 499 |
| 40 G 0,75 | 17,0 | 564 |
| 42 G 0,75 | 17,8 | 612 |
| 45 G 0,75 | 18,1 | 640 |
| 50 G 0,75 | 18,8 | 697 |
| 52 G 0,75 | 18,8 | 707 |
| 54 G 0,75 | 19,4 | 743 |
| 56 G 0,75 | 19,4 | 753 |
| 60 G 0,75 | 19,9 | 801 |
| 61 G 0,75 | 19,9 | 806 |
| 2 x 1 | 5,5 | 51 |
| 3 G 1 | 5,8 | 63 |
| 4 G 1 | 6,5 | 81 |
| 5 G 1 | 7,1 | 98 |
| 6 G 1 | 7,7 | 116 |
| 7 G 1 | 7,7 | 122 |
| 8 G 1 | 9,1 | 157 |
| 9 G 1 | 9,7 | 179 |
| 10 G 1 | 10,2 | 198 |
| 12 G 1 | 10,5 | 219 |
| 14 G 1 | 11,2 | 253 |
| 16 G 1 | 11,8 | 283 |
| 18 G 1 | 12,4 | 315 |
| 19 G 1 | 12,4 | 322 |
| 20 G 1 | 13,1 | 349 |
| 24 G 1 | 14,9 | 440 |
| 25 G 1 | 15,2 | 459 |
| 27 G 1 | 15,2 | 472 |
| 30 G 1 | 15,7 | 513 |
| 32 G 1 | 16,5 | 558 |
| 34 G 1 | 17,1 | 598 |
| 36 G 1 | 17,1 | 611 |
| 37 G 1 | 17,1 | 618 |
| 40 G 1 | 18,3 | 688 |
| 42 G 1 | 19,4 | 754 |
| 45 G 1 | 19,7 | 790 |
| 50 G 1 | 20,2 | 851 |
| 52 G 1 | 20,2 | 864 |
| 54 G 1 | 21,0 | 918 |
| 56 G 1 | 21,0 | 932 |
| 60 G 1 | 21,6 | 992 |
| 61 G 1 | 21,6 | 998 |
| 2 x 1,5 | 6,2 | 67 |
| 3 G 1,5 | 6,5 | 82 |
| 4 G 1,5 | 7,1 | 102 |
| 5 G 1,5 | 7,8 | 124 |
| 6 G 1,5 | 8,7 | 152 |
| 7 G 1,5 | 8,7 | 161 |
| 8 G 1,5 | 9,9 | 200 |
| 9 G 1,5 | 10,6 | 228 |
| 10 G 1,5 | 11,3 | 257 |
| 12 G 1,5 | 11,7 | 287 |
| 14 G 1,5 | 12,3 | 324 |
| 16 G 1,5 | 12,9 | 364 |
| 18 G 1,5 | 13,8 | 413 |
| 19 G 1,5 | 13,8 | 422 |
| 20 G 1,5 | 14,5 | 457 |
| 24 G 1,5 | 16,5 | 573 |
| 25 G 1,5 | 16,9 | 597 |
| 27 G 1,5 | 16,9 | 616 |
| 30 G 1,5 | 17,5 | 671 |
| 32 G 1,5 | 18,1 | 719 |
| 34 G 1,5 | 19,0 | 779 |
| 36 G 1,5 | 19,0 | 799 |
| 37 G 1,5 | 19,0 | 808 |
| 2 x 2,5 | 7,4 | 101 |
| 3 G 2,5 | 7,9 | 126 |
| 4 G 2,5 | 8,8 | 162 |
| 5 G 2,5 | 9,7 | 198 |
| 6 G 2,5 | 10,6 | 236 |
| 7 G 2,5 | 10,6 | 252 |
| 8 G 2,5 | 12,4 | 320 |
| 9 G 2,5 | 13,5 | 371 |
| 10 G 2,5 | 14,1 | 408 |
| 12 G 2,5 | 14,5 | 457 |
| 14 G 2,5 | 15,3 | 517 |
| 16 G 2,5 | 16,3 | 590 |
| 18 G 2,5 | 17,2 | 659 |
| 19 G 2,5 | 17,2 | 675 |
| 20 G 2,5 | 18,1 | 730 |
| 24 G 2,5 | 20,5 | 912 |
| 2 x 4 | 8,7 | 146 |
| 3 G 4 | 9,2 | 184 |
| 4 G 4 | 10,1 | 231 |
| 5 G 4 | 11,3 | 289 |
| 6 G 4 | 12,3 | 345 |
| 7 G 4 | 12,3 | 371 |
| 8 G 4 | 14,4 | 467 |
| 9 G 4 | 15,5 | 533 |
| 10 G 4 | 16,3 | 594 |
| 12 G 4 | 16,9 | 667 |
| 14 G 4 | 17,8 | 758 |
| 16 G 4 | 19,0 | 864 |
| 18 G 4 | 20,0 | 966 |
| 19 G 4 | 20,0 | 992 |
| 2 x 6 | 10,1 | 206 |
| 3 G 6 | 11,0 | 267 |
| 4 G 6 | 12,1 | 336 |
| 5 G 6 | 13,5 | 420 |
| 6 G 6 | 14,7 | 502 |
| 7 G 6 | 14,7 | 540 |
| 8 G 6 | 17,2 | 679 |
| 9 G 6 | 18,7 | 784 |
| 10 G 6 | 19,5 | 860 |
| 12 G 6 | 20,1 | 969 |
| 2 x 10 | 13,0 | 343 |
| 3 G 10 | 14,0 | 445 |
| 4 G 10 | 15,5 | 564 |
| 5 G 10 | 17,2 | 703 |
| 2 x 16 | 16,2 | 539 |
| 3 G 16 | 17,3 | 689 |
| 4 G 16 | 19,3 | 885 |
