Description

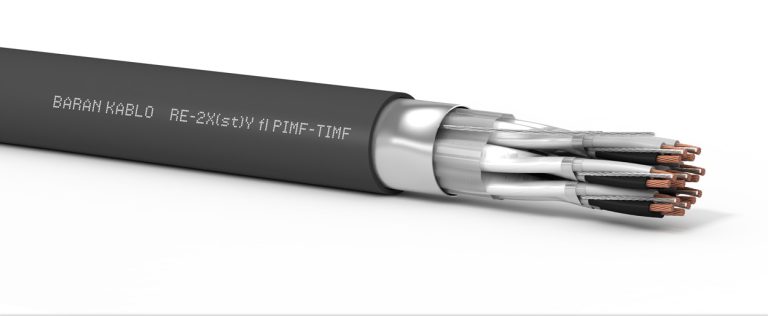

Baran Kablo’s RE-2X(St)Y-fl PIMF-TIMF Instrumentation Cable is designed for both indoor and outdoor applications in fields such as electronic control systems, communication technologies, and the petrochemical industry. This cable has been specially developed for analog and digital signal transmission and offers excellent protection against electromagnetic interference through both PIMF (Pairs in Metal Foil) and TIMF (Triads in Metal Foil) constructions.
The RE-2X(St)Y-fl PIMF-TIMF model guarantees high signal integrity and effective interference protection by individually shielding each pair and triad with metal foil. This feature is critically important for maintaining signal quality in environments with high levels of electromagnetic interference.
Engineered to withstand harsh environmental conditions, this cable is a reliable choice for both indoor and outdoor applications. Designed specifically for sectors such as electronic control, communication, and petrochemical processing, the RE-2X(St)Y-fl PIMF-TIMF Instrumentation Cable delivers uninterrupted and reliable performance, making it an ideal solution for technically demanding and safety-critical applications.
Cable Structure
| Conductor | Stranded Annealed Copper to IEC/EN 60228, Class 2 (Class 1 or Class 5 and / or tinned on request) |
| Insulation | XLPE to BS EN 50290-2-29 |
| Core Stranding | Screened pairs,triples are stranded in layers |
| Screen | Individual & Overall Al-PET foil Screens with Tinned Copper Drain Wire |
| Outer Sheath | UV Resistant, Flame Retardant PVC (EN 50290-2-22 )” |
| Colours | Outer Sheath: Blue or Black and other colours on request Core Colours: Numbered Pair: Black / White, Numbered Triples: Black / White / Red and Numbered Quad: Black / White / Red / Blue” |
Technical Specifications
| Min. Bending Radius | Fixed: 7.5 x Cable Diameter |
| Operating Voltage | 500 V |
| Test Voltage | 2000 V |
| Temperature Range Fixed | -30°C / +70°C, Installation -5°C to +50°C |
| Flame Retardancy | IEC 60332-1-2 / IEC 60332-3-24 Cat. C |
Technical Tables
| COPPER CLASS | NUMBER OF PER | DIAMETER | WEIGHT |
|---|---|---|---|
| CLASS 2 | 2x2x0,50 | 10.20 | 120 |
| CLASS 2 | 3x2x0,50 | 10.80 | 120 |
| CLASS 2 | 4x2x0,50 | 11.80 | 150 |
| CLASS 2 | 5x2x0,50 | 13.10 | 190 |
| CLASS 2 | 6x2x0,50 | 14.30 | 226 |
| CLASS 2 | 10x2x0,50 | 17.60 | 325 |
| CLASS 2 | 15x2x0,50 | 21.50 | 480 |
| CLASS 2 | 2x2x0,75 | 10.90 | 142 |
| CLASS 2 | 3x2x0,75 | 11.60 | 145 |
| CLASS 2 | 4x2x0,75 | 12.90 | 190 |
| CLASS 2 | 5x2x0,75 | 14.10 | 228 |
| CLASS 2 | 6x2x0,75 | 15.50 | 285 |
| CLASS 2 | 10x2x0,75 | 19.10 | 414 |
| CLASS 2 | 2x2x1 | 11.40 | 164 |
| CLASS 2 | 3x2x1 | 12.20 | 170 |
| CLASS 2 | 4x2x1 | 13.60 | 220 |
| CLASS 2 | 5x2x1 | 14.80 | 270 |
| CLASS 2 | 6x2x1 | 16.30 | 335 |
| CLASS 2 | 10x2x1 | 20.14 | 492 |
| CLASS 2 | 2x2x1,5 | 12.20 | 190 |
| CLASS 2 | 3x2x1,5 | 13.20 | 202 |
| CLASS 2 | 4x2x1,5 | 14.40 | 256 |
| CLASS 2 | 5x2x1,5 | 16.00 | 323 |
| CLASS 2 | 6x2x1,5 | 17.50 | 393 |
| CLASS 2 | 2x2x2,5 | 14.70 | 277 |
| CLASS 2 | 3x2x2,5 | 15.90 | 300 |
| CLASS 2 | 4x2x2,5 | 17.50 | 383 |
| CLASS 2 | 5x2x2,5 | 19.40 | 486 |
| CLASS 2 | 6x2x2,5 | 21.40 | 602 |
