Description
Baran Kablo’s RE-2X(st)H-fl Instrumentation Cable is ideal for both indoor and outdoor applications in fields such as electronic control systems, communication technologies, and the petrochemical industry. This cable provides high performance in analog and digital signal transmission, making it effective for a variety of industrial and commercial applications.
The RE-2X(st)H-fl model is equipped with an HFFR compound (which has flame-retardant and self-extinguishing properties), preventing the spread of flames and emitting very little smoke in the event of a fire—making it suitable for environments with high safety requirements. These features significantly enhance both life and property safety in areas with elevated fire risks.
Furthermore, the RE-2X(st)H-fl cable stands out with its high resistance to electromagnetic interference, ensuring reliable signal integrity and uninterrupted communication and data flow in complex systems. This product by Baran Kablo is designed to meet industrial infrastructure requirements, offering high quality and durability in technology-intensive environments.

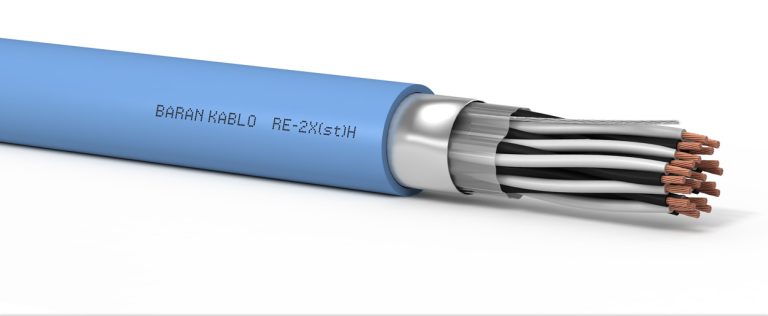

Cable Structure
| İletken | IEC/EN 60228, Sınıf 2'ye göre Örgülü Tavlanmış Bakır (1. Sınıf veya 5. Sınıf ve/veya isteğe göre kalaylı) |
| Yalıtkan | XLPE'den BS EN 50290-2-29'a göre |
| Büküm | Çekirdekler çiftler halinde bükülür, çiftler katmanlar halinde bükülür |
| Dış Kılıf Renk | Mavi veya Siyah ve istek üzerine diğer renkler |
| Damar Renkler | Numaralı Çift: Siyah / Beyaz, Numaralı Üçlüler: Siyah/ Beyaz / Kırmızı ve Numaralı Dörtlü: Siyah / Beyaz / Kırmızı / Mavi |
| Dış Kılıf | HFFR Bileşik EN50290-2-27 |
| Ekran | Kalaylı Bakır Tahliye Telli Al-PET Folyo Izgara |
| Bağlayıcı Bant | Pet Folyo |
Technical Specifications
| Min. Bükülme Yarıçapı | Sabit: 7,5 x Kablo Çapı |
| Çalışma Gerilimi | 500 V |
| Test Gerilimi | 2000 V |
| İşletme Sıcaklığı | Sabit -40°C / +70°C, Esnek - 5°C / +50°C |
| Alev Geciktiricilik | IEC 60332-1-2 / IEC 60332-3-24 Cat. C |
| Duman Yoğunluğu | IEC 61034-1&2 |
| Halojensizlik | DIN VDE 0482-754-1 / DIN EN 60754-1 / IEC 60754-1 |
Technical Tables
| COPPER CLASS | NUMBER OF PER | DIAMETER | WEIGHT |
|---|---|---|---|
| CLASS 2 | 1x2x0,50 | 6.2 | 48.00 |
| CLASS 2 | 2x2x0,50 | 7.3 | 64.00 |
| CLASS 2 | 3x2x0,50 | 9.8 | 96.00 |
| CLASS 2 | 4x2x0,50 | 10.7 | 119.00 |
| CLASS 2 | 5x2x0,50 | 11.7 | 145.00 |
| CLASS 2 | 6x2x0,50 | 12.9 | 185.00 |
| CLASS 2 | 10x2x0,50 | 15.8 | 263.00 |
| CLASS 2 | 15x2x0,50 | 19 | 376.00 |
| CLASS 2 | 20x2x0,50 | 21.3 | 476.00 |
| CLASS 2 | 1x2x0,75 | 6.6 | 57.00 |
| CLASS 2 | 2x2x0,75 | 7.7 | 78.00 |
| CLASS 2 | 3x2x0,75 | 10.5 | 117.00 |
| CLASS 2 | 4x2x0,75 | 11.5 | 145.00 |
| CLASS 2 | 5x2x0,75 | 12.7 | 186.00 |
| CLASS 2 | 6x2x0,75 | 13.8 | 227.00 |
| CLASS 2 | 10x2x0,75 | 17 | 327.00 |
| CLASS 2 | 15x2x0,75 | 20.8 | 482.00 |
| CLASS 2 | 1x2x1 | 7.1 | 70.00 |
| CLASS 2 | 2x2x1 | 8.1 | 90.00 |
| CLASS 2 | 3x2x1 | 11 | 135.00 |
| CLASS 2 | 4x2x1 | 12.1 | 170.00 |
| CLASS 2 | 5x2x1 | 13.4 | 215.00 |
| CLASS 2 | 6x2x1 | 14.5 | 262.00 |
| CLASS 2 | 10x2x1 | 18.15 | 390.00 |
| CLASS 2 | 1x2x1,5 | 7.5 | 80.00 |
| CLASS 2 | 2x2x1,5 | 8.6 | 108.00 |
| CLASS 2 | 3x2x1,5 | 11.8 | 160.00 |
| CLASS 2 | 4x2x1,5 | 13.1 | 210.00 |
| CLASS 2 | 5x2x1,5 | 14.3 | 260.00 |
| CLASS 2 | 6x2x1,5 | 15.8 | 325.00 |
| CLASS 2 | 10x2x1,5 | 19.5 | 476.00 |
| CLASS 2 | 1x2x2,5 | 8.8 | 113.00 |
| CLASS 2 | 2x2x2,5 | 10.4 | 165.00 |
| CLASS 2 | 3x2x2,5 | 14.3 | 245.00 |
| CLASS 2 | 4x2x2,5 | 15.9 | 323.00 |
| CLASS 2 | 5x2x2,5 | 17.4 | 403.00 |
| CLASS 2 | 6x2x2,5 | 19.2 | 505.00 |
