LIY(St)Y-TP Signal Control Cable

Do you have a question about

LIY(St)Y-TP Signal Control Cable ?

CALL US NOW

+90 262 655 0 276
I WANT TO GET INFORMATION
LIY(St)Y-TP Signal Control Cable Data Sheet PDF Download

Description

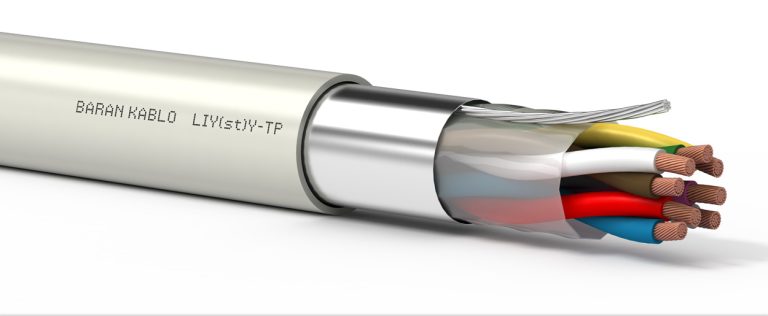

Baran Kablo’s LIY(St)Y-TP Matched and Shielded Data Cable is an excellent choice for indoor applications, including electronic control systems, panels, communication technologies, and power plants in the machine industry. Thanks to its outstanding Electromagnetic Compatibility (EMC) features, this cable preserves signal integrity even in environments with high noise potential, supporting reliable communication.

The LIY(St)Y-TP model, with its matched design, effectively protects each signal pair and provides extra protection against electromagnetic interference. This dual shielding makes the cable more resilient against external electromagnetic influences, thereby reducing crosstalk and signal degradation.

This product is ideal for applications that demand high technology and where electromagnetic interference is frequently a challenge. When used in sensitive electronic control panels, communication networks, and power plants, LIY(St)Y-TP delivers excellent performance and reliability. Baran Kablo’s model is designed to ensure the efficient operation of complex systems in facilities with robust technological infrastructure.



Cable Structure

ConductorFlexible Stranded Annealed Copper (IEC/EN 60228, VDE 0295, Class 5)
InsulationPVC (EN 50363-3, VDE 0207-363-3)
Core StrandingCores twisted to pairs, pairs is stranded in layers
ColoursOuter Sheath: Grey RAL7001 and other colours on request
Core ColoursColoured acc. to DIN 47100
Outer SheathPVC (EN 50290-2-22, EN 50363-4-1, VDE 0207-363-4-1)
WrappingPETP foil
ScreenAl-PET Foil with Tinned Copper Drain Wire



Technical Specifications

Min. Bending RadiusFixed: 5 x Cable Diameter, Flexible: 10 x Cable Diameter
Operating Voltage0.50 mm²..1.50 mm² 300 V / 500 V
Test Voltage2500 V
Temperature RangeFixed: -30 °C ........+70 °C, Flexible: -5 °C ........+70 °C
Flame RetardancyIEC 60332-1-2, VDE 0482-332-1-2



Technical Tables

Damar Sayısı X Kesit
(nxmm²) (Number of Veins X Section)(nxmm²)		Dış Çap
mm (Outer Diameter
mm)		Kablo Ağırlığı
≈ Kg/Km (Cable Weight ≈ Kg/Km)
1 x 2 x 0,143,110
2 x 2 x 0,144,618
3 x 2 x 0,144,921
4 x 2 x 0,145,527
5 x 2 x 0,146,032
6 x 2 x 0,146,739
7 x 2 x 0,146,741
8 x 2 x 0,147,647
9 x 2 x 0,148,356
10 x 2 x 0,148,559
12 x 2 x 0,148,765
14 x 2 x 0,149,272
16 x 2 x 0,149,884
18 x 2 x 0,1410,391
19 x 2 x 0,1410,393
20 x 2 x 0,1411,0103
24 x 2 x 0,1412,2119
25 x 2 x 0,1412,6129
27 x 2 x 0,1412,6134
30 x 2 x 0,1413,1143
32 x 2 x 0,1413,5151
34 x 2 x 0,1414,2166
36 x 2 x 0,1414,2170
37 x 2 x 0,1414,2172
40 x 2 x 0,1415,3193
42 x 2 x 0,1416,1203
45 x 2 x 0,1416,3212
50 x 2 x 0,1416,9234
52 x 2 x 0,1416,9239
54 x 2 x 0,1417,4247
56 x 2 x 0,1417,4252
1 x 2 x 0,223,512
2 x 2 x 0,225,424
3 x 2 x 0,225,728
4 x 2 x 0,226,234
5 x 2 x 0,226,942
6 x 2 x 0,227,548
7 x 2 x 0,227,551
8 x 2 x 0,228,763
9 x 2 x 0,229,574
10 x 2 x 0,229,878
12 x 2 x 0,2210,186
14 x 2 x 0,2210,695
16 x 2 x 0,2211,3110
18 x 2 x 0,2211,9120
19 x 2 x 0,2211,9123
1 x 2 x 0,143,110
2 x 2 x 0,144,618
3 x 2 x 0,144,921
4 x 2 x 0,145,527
5 x 2 x 0,146,032
6 x 2 x 0,146,739
7 x 2 x 0,146,741
8 x 2 x 0,147,647
9 x 2 x 0,148,356
10 x 2 x 0,148,559
12 x 2 x 0,148,765
14 x 2 x 0,149,272
16 x 2 x 0,149,884
18 x 2 x 0,1410,391
19 x 2 x 0,1410,393
20 x 2 x 0,1411,0103
24 x 2 x 0,1412,2119
25 x 2 x 0,1412,6129
27 x 2 x 0,1412,6134
30 x 2 x 0,1413,1143
32 x 2 x 0,1413,5151
34 x 2 x 0,1414,2166
36 x 2 x 0,1414,2170
37 x 2 x 0,1414,2172
40 x 2 x 0,1415,3193
42 x 2 x 0,1416,1203
45 x 2 x 0,1416,3212
50 x 2 x 0,1416,9234
52 x 2 x 0,1416,9239
54 x 2 x 0,1417,4247
56 x 2 x 0,1417,4252
1 x 2 x 0,223,512
2 x 2 x 0,225,424
3 x 2 x 0,225,728
4 x 2 x 0,226,234
5 x 2 x 0,226,942
6 x 2 x 0,227,548
7 x 2 x 0,227,551
8 x 2 x 0,228,763
9 x 2 x 0,229,574
10 x 2 x 0,229,878
12 x 2 x 0,2210,186
14 x 2 x 0,2210,695
16 x 2 x 0,2211,3110
18 x 2 x 0,2211,9120
19 x 2 x 0,2211,9123
20 x 2 x 0,2212,7136
24 x 2 x 0,2214,2164
25 x 2 x 0,2214,5169
27 x 2 x 0,2214,5175
30 x 2 x 0,2215,0188
32 x 2 x 0,2215,8206
34 x 2 x 0,2216,3216
36 x 2 x 0,2216,3223
37 x 2 x 0,2216,3226
40 x 2 x 0,2217,6252
42 x 2 x 0,2218,7274
45 x 2 x 0,2219,0286
50 x 2 x 0,2219,7316
52 x 2 x 0,2219,7322
54 x 2 x 0,2220,2333
56 x 2 x 0,2220,2339
1 x 2 x 0,253,814
2 x 2 x 0,255,626
3 x 2 x 0,255,931
4 x 2 x 0,256,640
5 x 2 x 0,257,246
6 x 2 x 0,257,853
7 x 2 x 0,257,856
8 x 2 x 0,259,169
9 x 2 x 0,2510,081
10 x 2 x 0,2510,286
12 x 2 x 0,2510,595
14 x 2 x 0,2511,3111
16 x 2 x 0,2511,9122
18 x 2 x 0,2512,7139
19 x 2 x 0,2512,7143
20 x 2 x 0,2513,3150
24 x 2 x 0,2514,9181
25 x 2 x 0,2515,4195
27 x 2 x 0,2515,4202
30 x 2 x 0,2515,9217
32 x 2 x 0,2516,5229
34 x 2 x 0,2517,3249
36 x 2 x 0,2517,3257
37 x 2 x 0,2517,3260
40 x 2 x 0,2518,6289
42 x 2 x 0,2519,7314
45 x 2 x 0,2520,0328
50 x 2 x 0,2520,6351
52 x 2 x 0,2520,6359
1 x 2 x 0,344,016
2 x 2 x 0,345,929
3 x 2 x 0,346,235
4 x 2 x 0,347,045
5 x 2 x 0,347,653
6 x 2 x 0,348,564
7 x 2 x 0,348,569
8 x 2 x 0,349,984
9 x 2 x 0,3410,692
10 x 2 x 0,3411,1104
12 x 2 x 0,3411,4115
14 x 2 x 0,3412,0128
16 x 2 x 0,3412,8147
18 x 2 x 0,3413,5160
19 x 2 x 0,3413,5165
20 x 2 x 0,3414,3181
24 x 2 x 0,3416,0217
25 x 2 x 0,3416,4224
27 x 2 x 0,3416,4234
30 x 2 x 0,3417,1260
32 x 2 x 0,3417,8274
34 x 2 x 0,3418,6298
36 x 2 x 0,3418,6307
1 x 2 x 0,54,721
2 x 2 x 0,57,342
3 x 2 x 0,57,751
4 x 2 x 0,58,665
5 x 2 x 0,59,681
6 x 2 x 0,510,492
7 x 2 x 0,510,499
8 x 2 x 0,512,1120
9 x 2 x 0,513,2139
10 x 2 x 0,513,6148
12 x 2 x 0,514,2172
14 x 2 x 0,514,9191
16 x 2 x 0,515,9218
18 x 2 x 0,516,9247
19 x 2 x 0,516,9253
20 x 2 x 0,517,8267
1 x 2 x 0,755,327
2 x 2 x 0,758,154
3 x 2 x 0,758,666
4 x 2 x 0,759,684
5 x 2 x 0,7510,598
6 x 2 x 0,7511,6119
7 x 2 x 0,7511,6128
8 x 2 x 0,7513,5155
9 x 2 x 0,7514,6177
10 x 2 x 0,7515,1190
12 x 2 x 0,7515,7220
14 x 2 x 0,7516,5245
16 x 2 x 0,7517,6280
18 x 2 x 0,7518,7315
19 x 2 x 0,7518,7325
20 x 2 x 0,7519,9352
1 x 2 x 15,631
2 x 2 x 18,762
3 x 2 x 19,276
4 x 2 x 110,298
5 x 2 x 111,4121
6 x 2 x 112,6145
7 x 2 x 112,6157
8 x 2 x 114,7188
9 x 2 x 115,9215
10 x 2 x 116,4231
12 x 2 x 117,1267
14 x 2 x 118,0298
16 x 2 x 119,1340
1 x 2 x 1,56,743
2 x 2 x 1,510,385
3 x 2 x 1,511,1111
4 x 2 x 1,512,2135
5 x 2 x 1,513,5166
6 x 2 x 1,515,0198
7 x 2 x 1,515,0216
8 x 2 x 1,517,6266
9 x 2 x 1,519,1303
10 x 2 x 1,519,8335
1 x 2 x 2,57,656
2 x 2 x 2,511,9117
3 x 2 x 2,512,8155
4 x 2 x 2,514,3196
5 x 2 x 2,515,9241
6 x 2 x 2,517,5287
7 x 2 x 2,517,5313
