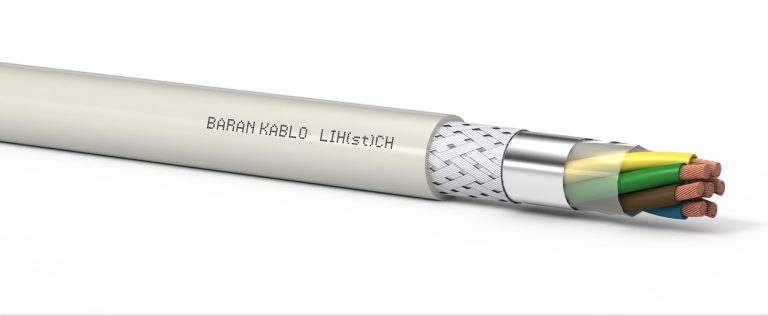

LIH(St)CH Signal Control Cable

Do you have a question about

LIH(St)CH Signal Control Cable ?

CALL US NOW

+90 262 655 0 276
I WANT TO GET INFORMATION
LIH(St)CH Signal Control Cable Data Sheet PDF Download

Description

Baran Kablo’s LIH(St)CH Halogen-Free and Double Shielded Data Cable is designed for use in electronic control systems, communication technologies, and machine industry panels. This cable offers an excellent solution for indoor signal transmission and is equipped with outstanding Electromagnetic Compatibility (EMC) features.

The LIH(St)CH model is reinforced with an HFFR (Flame Retardant and Self-Extinguishing) compound and features a halogen-free design. This property prevents the spread of flames and minimizes smoke production in the event of a fire, thereby enhancing safety during emergencies. With its double shielding technology, the cable provides superior protection against external electromagnetic interference, preserving data integrity and ensuring uninterrupted communication.

This cable is ideal for applications with especially high safety requirements, such as in environments with dense electrical equipment or in industrial facilities that demand a high level of security. LIH(St)CH offers a reliable and durable solution for sensitive electronic applications, meeting the high performance and safety expectations of complex systems.



Cable Structure

İletkenEsnek Örgülü Tavlı Bakır (IEC/EN 60228, VDE 0295, Sınıf 5)
Yalıtkanhalojen içermeyen polimer bileşik (EN 50290-2-26, VDE 0207-363-7)
BükümKatmanlar Halinde
Dış Kılıf RenkGri RAL7001 ve talep üzerine diğer renkler
Temel RenklerRenkli acc. DIN 47100'e göre
Dış Kılıfhalojen içermeyen polimer bileşik (EN 50290-2-27, VDE 0207-363-7)
SargıPet Folyo
Ekran1. Al-PET Folyo
2. Kalaylı Bakır Tel Örgü



Technical Specifications

Min. Bükülme YarıçapıSabit: 5 x Kablo Çapı, Esnek: 10 x Kablo Çapı
Çalışma Gerilimi0.50 mm²..1.50 mm² 300 V / 500 V; 2.50 mm²…... 450 V / 750 V
Test Gerilimi2500 V
İşletme SıcaklığıSabit: -30 °C ........+70 °C, Esnek: -5 °C ........+70 °C
Alev GeciktiricilikIEC 60332-1-2, VDE 0482-332-1-2
Duman YoğunluğuIEC 61034-1&2
HalojensizlikDIN VDE 0482-754-1 / DIN EN 60754-1 / IEC 60754-1



Technical Tables

Damar Sayısı X Kesit
(nxmm²) (Number of Veins X Section)(nxmm²)		Dış Çap
mm (Outer Diameter
mm)		Kablo Ağırlığı
≈ Kg/Km (Cable Weight ≈ Kg/Km)
2 x 0,143,820
3 x 0,144,023
4 x 0,144,226
5 x 0,144,531
6 x 0,144,835
7 x 0,144,837
8 x 0,145,644
9 x 0,145,949
10 x 0,146,052
12 x 0,146,257
14 x 0,146,666
16 x 0,146,974
18 x 0,147,280
19 x 0,147,282
20 x 0,147,586
24 x 0,148,4103
25 x 0,148,6107
27 x 0,148,6111
30 x 0,148,8121
32 x 0,149,1127
34 x 0,149,6138
36 x 0,149,6143
37 x 0,149,6145
40 x 0,1410,2157
42 x 0,1410,6165
45 x 0,1411,0178
50 x 0,1411,2191
52 x 0,1411,2196
54 x 0,1411,5202
56 x 0,1411,5206
2 x 0,224,223
3 x 0,224,327
4 x 0,224,633
5 x 0,225,240
6 x 0,225,545
7 x 0,225,548
8 x 0,226,255
9 x 0,226,763
10 x 0,226,969
12 x 0,227,176
14 x 0,227,484
16 x 0,227,792
18 x 0,228,3104
19 x 0,228,3107
20 x 0,228,6113
24 x 0,229,6136
25 x 0,229,8141
27 x 0,229,8147
30 x 0,2210,1158
32 x 0,2210,4168
34 x 0,2211,0183
36 x 0,2211,0189
37 x 0,2211,0192
40 x 0,2211,6206
42 x 0,2212,2217
45 x 0,2212,5234
50 x 0,2212,8252
52 x 0,2212,8258
54 x 0,2213,2268
56 x 0,2213,2274
2 x 0,254,325
3 x 0,254,529
4 x 0,254,836
5 x 0,255,443
6 x 0,255,750
7 x 0,255,754
8 x 0,256,461
9 x 0,257,071
10 x 0,257,276
12 x 0,257,384
14 x 0,257,793
16 x 0,258,2106
18 x 0,258,6116
19 x 0,258,6120
20 x 0,259,0128
24 x 0,2510,0152
25 x 0,2510,2159
27 x 0,2510,2166
30 x 0,2510,5178
32 x 0,2511,1195
34 x 0,2511,5204
36 x 0,2511,5212
37 x 0,2511,5215
40 x 0,2512,1233
42 x 0,2512,9250
45 x 0,2513,1264
50 x 0,2513,4284
52 x 0,2513,4292
54 x 0,2514,0309
56 x 0,2514,0316
2 x 0,344,527
3 x 0,344,734
4 x 0,345,243
5 x 0,345,649
6 x 0,346,057
7 x 0,346,061
8 x 0,346,974
9 x 0,347,481
10 x 0,347,587
12 x 0,347,797
14 x 0,348,3112
16 x 0,348,7124
18 x 0,349,1137
19 x 0,349,1141
20 x 0,349,7153
24 x 0,3410,6179
25 x 0,3411,0191
27 x 0,3411,0200
30 x 0,3411,4216
32 x 0,3411,7227
34 x 0,3412,1241
36 x 0,3412,1250
37 x 0,3412,1255
40 x 0,3413,1281
42 x 0,3413,9301
45 x 0,3414,1316
50 x 0,3414,4342
52 x 0,3414,4351
54 x 0,3414,8365
56 x 0,3414,8374
2 x 0,55,439
3 x 0,55,647
4 x 0,56,157
5 x 0,56,870
6 x 0,57,381
7 x 0,57,388
8 x 0,58,4105
9 x 0,58,9116
10 x 0,59,1125
12 x 0,59,6145
14 x 0,510,0161
16 x 0,510,5179
18 x 0,511,2203
19 x 0,511,2210
20 x 0,511,7220
24 x 0,513,1265
25 x 0,513,4274
27 x 0,513,4288
30 x 0,514,0319
32 x 0,514,5337
34 x 0,515,0356
36 x 0,515,0370
37 x 0,515,0377
40 x 0,516,1413
42 x 0,517,1445
45 x 0,517,3468
50 x 0,517,8506
52 x 0,517,8520
54 x 0,518,4547
56 x 0,518,4561
2 x 0,755,847
3 x 0,756,158
4 x 0,756,873
5 x 0,757,387
6 x 0,758,1104
7 x 0,758,1113
8 x 0,759,1131
9 x 0,759,9149
10 x 0,7510,1160
12 x 0,7510,4183
14 x 0,7511,1211
16 x 0,7511,7233
18 x 0,7512,4264
19 x 0,7512,4274
20 x 0,7513,0287
24 x 0,7514,5343
25 x 0,7514,8357
27 x 0,7514,8376
30 x 0,7515,5416
32 x 0,7516,0440
34 x 0,7516,8472
36 x 0,7516,8491
37 x 0,7516,8500
40 x 0,7517,8540
2 x 16,154
3 x 16,671
4 x 17,287
5 x 17,7102
6 x 18,6122
7 x 18,6134
8 x 19,9159
9 x 110,5176
10 x 111,0197
12 x 111,3223
14 x 111,9251
16 x 112,6287
18 x 113,3317
19 x 113,3329
20 x 114,1352
24 x 115,7421
25 x 116,0436
27 x 116,0460
30 x 116,5501
32 x 117,3541
34 x 117,9570
36 x 117,9594
37 x 117,9606
2 x 1,57,274
3 x 1,57,693
4 x 1,58,4119
5 x 1,59,1142
6 x 1,510,1169
7 x 1,510,1186
8 x 1,511,6220
9 x 1,512,6251
10 x 1,513,0270
12 x 1,513,3309
14 x 1,514,2356
16 x 1,514,9398
18 x 1,515,8447
19 x 1,515,8464
20 x 1,516,8496
24 x 1,518,7595
2 x 2,58,3101
3 x 2,58,7131
4 x 2,59,7169
5 x 2,510,5201
6 x 2,511,6241
7 x 2,511,6268
8 x 2,513,4315
9 x 2,514,5355
10 x 2,514,9387
12 x 2,515,5452
14 x 2,516,3512
16 x 2,517,3584
18 x 2,518,4653
19 x 2,518,4680
