Description

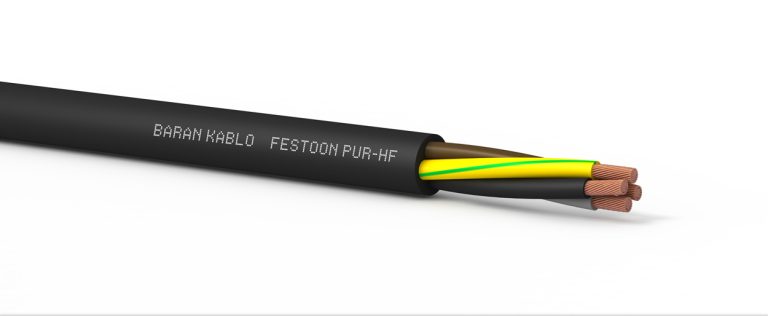

Baran Kablo’s Festoon PUR-HF Flexible Cable is designed specifically for mobile applications, conveyor and vehicle systems, and pull chain applications. This cable has been developed to meet high mechanical demands in wet, dry, and humid outdoor conditions, which makes it particularly preferred in industrial mobile applications.
One of the cable’s most important features is that it is halogen-free. This ensures low smoke and toxic gas emissions in the event of a fire, thereby enhancing safety. Additionally, its special PUR (Polyurethane) outer jacket provides excellent resistance against oil, ozone, and UV rays. These features guarantee long-lasting protection against harsh environmental factors and deliver high performance in continuously moving systems.
The Festoon PUR-HF Flexible Cable is ideal for applications exposed to extreme mechanical stress and environmental impacts. This product offers reliability and durability in various industrial scenarios such as conveyor systems, automation equipment, and moving applications, making it an excellent choice for such uses.
Cable Structure
| Conductor | Flexible Stranded Annealed Copper (IEC/EN 60228, VDE 0295, Class 5) |
| Insulation | Special Halogen free compound |
| Core Stranding | In layers |
| Outer Sheath Color | Black and other colors on request |
| Vein Colors | Coloured cores according to VDE 0293 |
| Outer Sheath | HF-PUR |
| Support Staff | Textile based central strength member |
Technical Specifications
| Min. Bending Radius | Fixed: 6x Cable Diameter, Flexible: 8x Cable Diameter |
| Operating Voltage | 600 V / 1000 V |
| Test Voltage | 2500 V |
| Temperature Range | Fixed: -50 °C ........+90 °C, Flexible: -40 °C ........+80 °C |
| Flame Retardancy | IEC/EN 60332-2-1 |
| Oil Resistance | EN/IEC 60811-2-1, DIN VDE 0473-811-2-1 |
| Feston Cruising Speed | 200 m/min. |
| Drag Chain Movement Speed | 200 m/min. |
