Def Stan 61-12 TVPE C LSOH Data Sheet PDF Download

Description

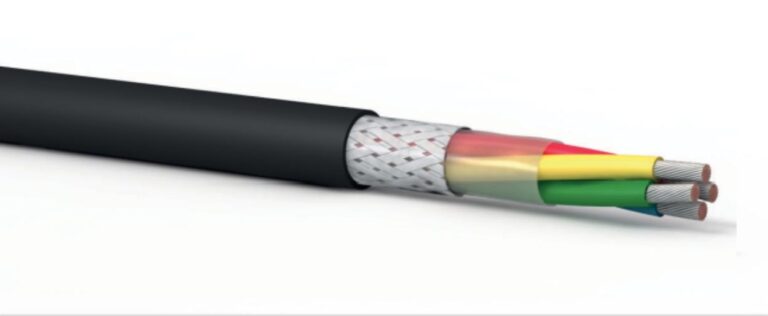

TVPE C LSOH cable is a low smoke and halogen free (LSOH) cable developed to meet the needs of high density cabling. It provides fire safety in the defense industry, while at the same time providing a reliable connection for data transmission.

Cable Construction

ConductorTinned Annealed Stranded Copper Wires
InsulationLow Smoke Zero Halogen HFFR Compound
Core ColoursColoured acc. to Gen. To DEF-STAN 61-12 Part 5 see Technical Information Page
Core StrandingCores Stranded in Layer with Optimum Lay Length
Seperator TapePolyster Tape
ScreenTinned Copper fire Braid
Outer SheathLow Smoke Zero Halogen HFFR Compound
Sheath ColourBlack (RAL 9005) and other colours on request



Technical Characteristics

Rated Voltage440 V
Test Voltage 2000 V
Temperature Range-20 ila +70 °C
Reference StandardGen. to DEF-STAN 61-12 Part 5
Min Bending Radius 10 x D mm
Flame Retardancy IEC/EN 60332-1-2
Halogen ContentIEC/EN 60754 1/2
Smoke EmissionIEC/EN 61034 1/2
Cross Sectional Area
mm²		 Max. Resistance of Conductor
Ω/km
0,22 96
0,5 40,1
0,75 26,7



Technical Tables

Product CodeNo. of cores x cross
sectional area
(n x mm²)		Insulation Diameter (± %5 mm)Nominal Diameter (± %5 mm)Nominal Weight (~ kg/km)
7-2-2C2x0,221,24,022
7-2-3C3x0,221,24,125
7-2-4C4x0,221,24,430
7-2-6C6x0,221,25,445
7-2-8C8x0,221,25,757
7-2-12C12x0,221,26,871
7-2-18C18x0,221,28,0100
7-2-25C25x0,221,29,5136
16-2-2C2x0,501,856,150
16-2-3C3x0,501,856,459
16-2-4C4x0,501,856,869
16-2-6C6x0,501,857,997
16-2-8C8x0,501,858,5125
16-2-12C12x0,501,8510,2158
16-2-18C18x0,501,8512,0226
16-2-25C25x0,501,8514,1297
24-2-2C2x0,752,056,659
24-2-4C4x0,752,057,485
24-2-6C6x0,752,058,6121
24-2-8C8x0,752,059,1153
24-2-12C12x0,752,0511,0194
24-2-18C18x0,752,0512,9285
