Description

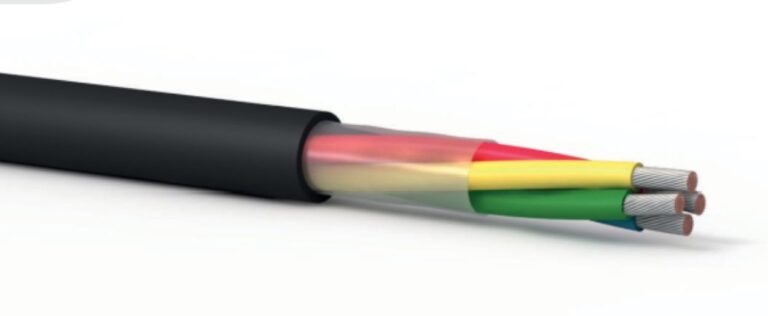

TVPE A PVC cable is one of the standard cabling solutions used in the defense industry due to its high flexibility and durability. PVC insulation protects this cable against abrasion and environmental influences, ensuring long-lasting performance in demanding military applications.
Cable Construction
Conductor | Tinned Annealed Stranded Copper Wires |
---|---|
Insulation | PVC Compound |
Core Colours | Coloured acc. to Gen. To DEF-STAN 61-12 Part 5 see Technical Information Page |
Core Stranding | Cores Stranded in Layer with Optimum Lay Length |
Seperator Tape | Polyster Tape |
Outer Sheath | PVC Compound |
Sheath Colour | Black (RAL 9005) and other colours on request |
Technical Characteristics
Rated Voltage | 440 V |
---|---|
Test Voltage | 2000 V |
Temperature Range | -20 ila +70 °C |
Reference Standard | Gen. to DEF-STAN 61-1Z Part 5 |
Min Bending Radius | 8 x D mm |
Flame Retardancy | IEC/EN 60332-1-2 |
Cross Sectional Area mm² |
Max. Resistance of Conductor Ω/km |
---|---|
0,22 | 96 |
0,5 | 40,1 |
0,75 | 26,7 |
Technical Table
Product Code | No. of cores x cross sectional area (n x mm²) | Insulation Diameter (± %5 mm) | Nominal Diameter (± %5 mm) | Nominal Weight (~ kg/km) |
---|---|---|---|---|
7-2-2A | 2x0,22 | 1,2 | 3,5 | 14 |
7-2-3A | 3x0,22 | 1,2 | 3,7 | 18 |
7-2-4A | 4x0,22 | 1,2 | 4,0 | 22 |
7-2-6A | 6x0,22 | 1,2 | 4,7 | 32 |
7-2-8A | 8x0,22 | 1,2 | 5,3 | 46 |
7-2-12A | 12x0,22 | 1,2 | 6,3 | 55 |
7-2-18A | 18x0,22 | 1,2 | 7,5 | 81 |
7-2-25A | 25x0,22 | 1,2 | 9,0 | 112 |
16-2-2A | 2x0,50 | 1,85 | 5,6 | 37 |
16-2-3A | 3x0,50 | 1,85 | 5,9 | 46 |
16-2-4A | 4x0,50 | 1,85 | 6,4 | 55 |
16-2-6A | 6x0,50 | 1,85 | 7,5 | 81 |
16-2-8A | 8x0,50 | 1,85 | 8,0 | 107 |
16-2-12A | 12x0,50 | 1,85 | 9,6 | 131 |
16-2-18A | 18x0,50 | 1,85 | 11,4 | 195 |
16-2-25A | 25x0,50 | 1,85 | 13,5 | 254 |
24-2-2A | 2x0,75 | 2,05 | 6,2 | 46 |
24-2-4A | 4x0,75 | 2,05 | 7,0 | 70 |
24-2-6A | 6x0,75 | 2,05 | 8,2 | 102 |
24-2-8A | 8x0,75 | 2,05 | 8,7 | 134 |
24-2-12A | 12x0,75 | 2,05 | 10,6 | 170 |
24-2-18A | 18x0,75 | 2,05 | 12,3 | 245 |
